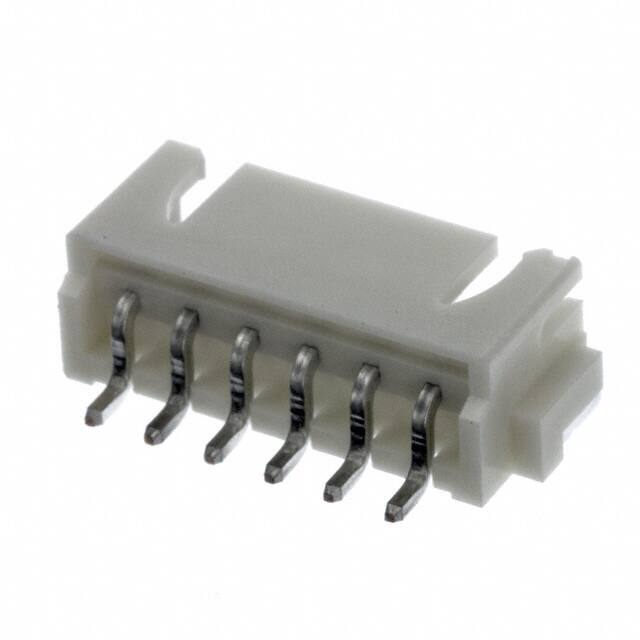

S6B-XH-SM4-TB(LF)(SN)

Specifications

Connector Type

Header

Mil Conformance

NO

Contact Type

Male Pin

Parça Durumu

Active

Total Number Of Contacts

6

Housing Color

Beige

Nominal Gerilim

250V

Number Of Positions Loaded

All

Fastening Type

Detent Lock

Material Flammability Rating

UL94 V-0

Terminal Adımı

2.5mm

Din Conformance

NO

Gender

Male

Kurşunsuz

Lead Free

Ambalaj

Cut Tape (CT)

Contact Resistance

20mOhm

Contact Finish Mating

Tin

Pozisyon Sayısı

6

Yayın Yılı

2005

Sıra Sayısı

1

Filter Feature

NO

Seri

XH

Shrouding

Shrouded - 4 Wall

Insulation Height

0.236 6.00mm

Özellikler

Solder Retention

Contact Materials

Copper Alloy

Ul Flammability Code

94V-0

Insulation Color

Natural

Depth

7mm

Iec Conformance

NO

JESD-609 Kodu

e3

Contact Shape

Square

Pitch Mating

0.098 2.50mm

Terminal

Solder

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-25°C~85°C

Kurşunsuz Kodu

yes

Max Voltage Rating Ac

250V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Right Angle
