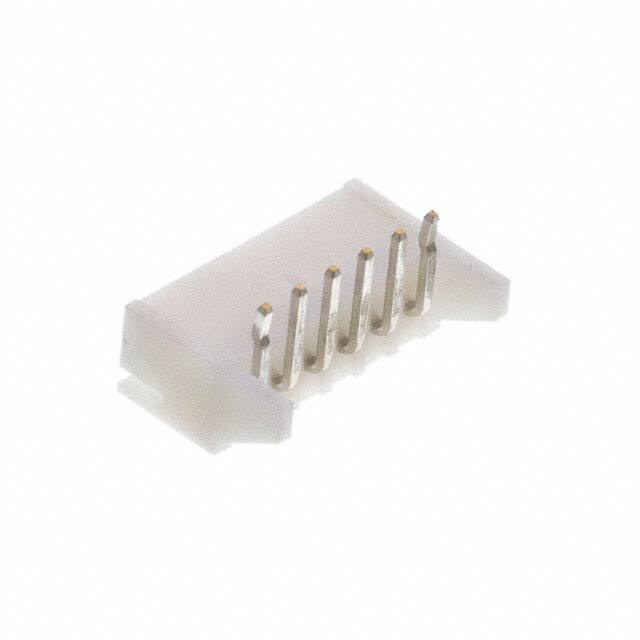

S6B-XH-A-1(LF)(SN)

Specifications

Ambalaj

Bulk

Style

Board to Cable/Wire

Kurşunsuz

Lead Free

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Terminal Adımı

2.5mm

Contact Length Post

0.134 3.40mm

Kurşunsuz Kodu

yes

Fastening Type

Detent Lock

Çalışma Sıcaklığı

-25°C~85°C

Material Flammability Rating

UL94 V-0

Sıra Sayısı

1

Yayın Yılı

2010

Montaj

Through Hole

Pozisyon Sayısı

6

Contact Finish Mating

Tin

Montaj Tipi

Through Hole, Right Angle

Filter Feature

NO

Fabrika Tedarik Süresi

13 Weeks

Material

Polyamide

Additional Feature

SHROUDED, SIDE ENTRY

Insulation Height

0.240 6.10mm

Insulation Materials

Polyamide (PA66), Nylon 6/6

Option

GENERAL PURPOSE

Mixed Contacts

NO

Seri

XH

Shrouding

Shrouded - 4 Wall

Contact Materials

Brass

Ul Flammability Code

94V-0

Mil Conformance

NO

Connector Type

Header

Insulation Resistance

1GOhm

Contact Shape

Square

JESD-609 Kodu

e3

Akım Değeri

3A

Iec Conformance

NO

Insulation Color

Natural

Contact Type

Male Pin

RoHS Durumu

RoHS Compliant
