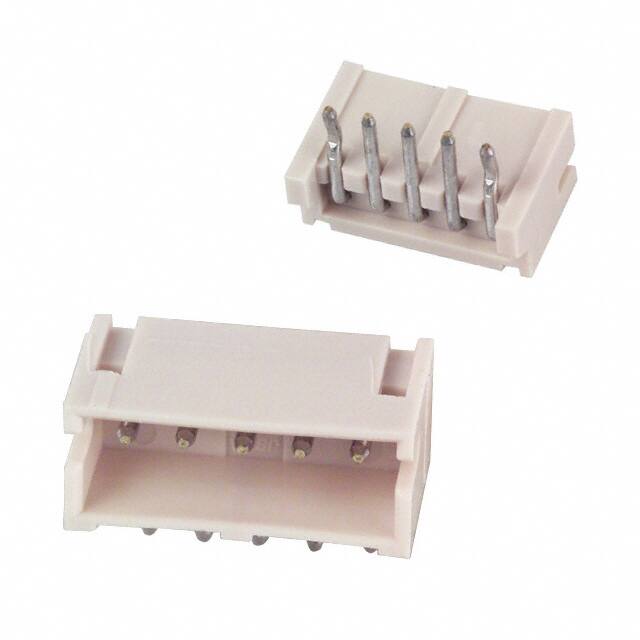

S5B-ZR(LF)(SN)

Specifications

Max Current Rating

1A

Genişlik

3.5mm

Lead Pitch

1.5mm

Connector Type

Header

Housing Material

Polyamide

Parça Durumu

Active

Ambalaj

Bulk

Contact Length Post

0.106 2.69mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Contact Resistance

30mOhm

Seri

ZH

JESD-609 Kodu

e3

Çalışma Sıcaklığı

-25°C~85°C

Pozisyon Sayısı

5

Contact Shape

Circular

Style

Board to Cable/Wire

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Montaj Tipi

Through Hole, Right Angle

Montaj

Through Hole

ECCN Kodu

EAR99

Akım Değeri

1A

Fabrika Tedarik Süresi

16 Weeks

Number Of Positions Loaded

All

Insulation Height

0.146 3.70mm

Orientation

Right Angle

Contact Finish Mating

Tin

Contact Type

Male Pin

Contact Materials

Brass

Gender

Male

Yayın Yılı

2010

Terminal

Press-Fit, Solder

Fastening Type

Detent Lock

Pitch Mating

0.059 1.50mm

Shrouding

Shrouded - 4 Wall

Max Voltage Rating Ac

50V

Depth

6mm

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Yükseklik

3.7mm
