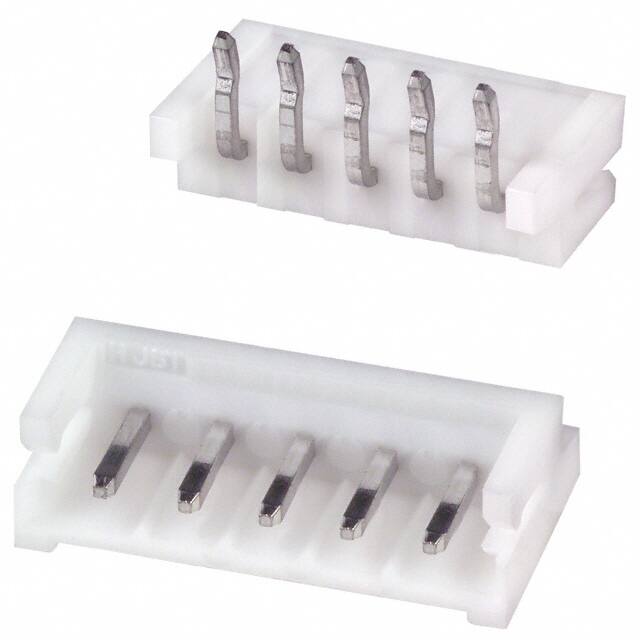

S5B-EH(LF)(SN)

Specifications

Filter Feature

NO

Contact Type

Male Pin

Option

GENERAL PURPOSE

Fastening Type

Latch Lock

Terminal

Press-Fit, Solder

Gender

Male

Max Voltage Rating Ac

250V

Pitch Mating

0.098 2.50mm

Insulation Color

Natural

Mixed Contacts

NO

RoHS Durumu

RoHS Compliant

Uzunluk

15mm

Housing Color

White

Housing Material

Nylon

Connector Type

Header

Seri

EH

Sıra Sayısı

1

Ambalaj

Bulk

Parça Durumu

Active

Contact Length Post

0.126 3.20mm

Contact Shape

Square

Iec Conformance

NO

Akım Değeri

3A

Din Conformance

NO

Contact Finish Mating

Tin

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

18 Weeks

Orientation

Right Angle

Insulation Height

0.165 4.20mm

Number Of Positions Loaded

All

Contact Materials

Brass

Yayın Yılı

2004

Depth

8.2mm

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Shrouding

Shrouded - 3 Wall

Contact Lengthmating

0.157 4.00mm

Kurşunsuz

Lead Free

Max Current Rating

3A

Lead Pitch

2.5mm
