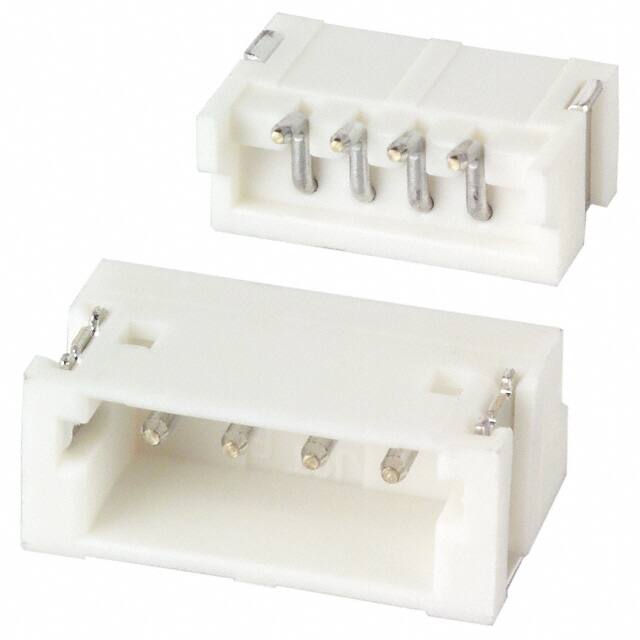

S4B-ZR-SM3A-TF

Specifications

Gender

Male

Pitch Mating

0.059 1.50mm

Option

GENERAL PURPOSE

Yayın Yılı

2005

Additional Feature

SIDE ENTRY

Lead Pitch

1.5mm

Contact Finish Mating

Tin-Lead

Mixed Contacts

NO

Ambalaj

Tape & Reel (TR)

Nominal Gerilim

50V

Shrouding

Shrouded - 4 Wall

Seri

ZH

Insulation Materials

Polyamide (PA46), Nylon 4/6, Glass Filled

Insulation Color

Natural

Contact Shape

Circular

Parça Durumu

Obsolete

Mil Conformance

NO

Housing Material

Nylon

RoHS Durumu

Non-RoHS Compliant

Din Conformance

NO

Çalışma Sıcaklığı

-25°C~85°C

Insulation Height

0.146 3.70mm

Filter Feature

NO

Total Number Of Contacts

4

Özellikler

Solder Retention

Current Rating Amps

1A

Style

Board to Cable/Wire

Iec Conformance

NO

Montaj Tipi

Surface Mount, Right Angle

Number Of Positions Loaded

All

Terminal

Solder

JESD-609 Kodu

e0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz

Contains Lead

Sıra Sayısı

1

Fastening Type

Detent Lock

Montaj

Surface Mount

Material Flammability Rating

UL94 V-0

Connector Type

Header

Contact Materials

Brass
