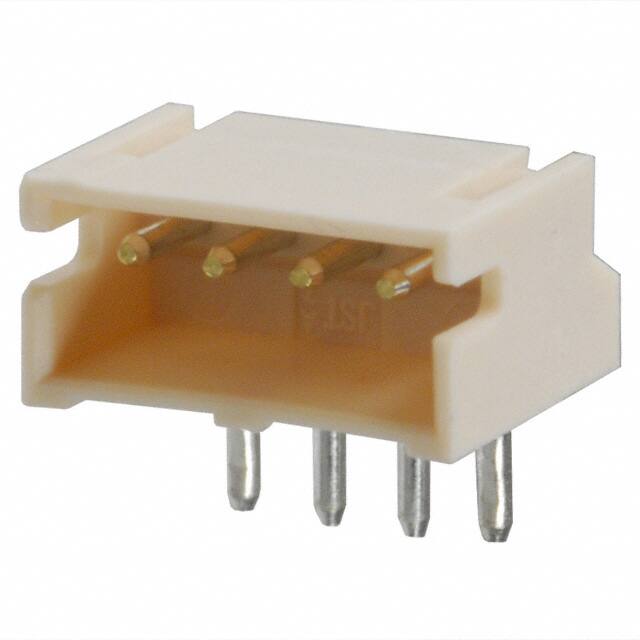

S4B-ZR(LF)(SN)

Specifications

Terminal

Press-Fit, Solder

JESD-609 Kodu

e3

Montaj Tipi

Through Hole, Right Angle

Renk

Natural, White

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A

Insulation Resistance

500MOhm

Weight

28.349523g

ECCN Kodu

EAR99

Contact Type

Male Pin

Fastening Type

Detent Lock

Housing Color

Beige

Panel Thickness

3.5mm

Flammability Rating

UL94 V-0

Montaj

Through Hole

Depth

6mm

Shrouding

Shrouded - 4 Wall

Seri

ZH

Ambalaj

Bulk

Lead Pitch

1.5mm

Contact Finish Mating

Tin

Pitch Mating

0.059 1.50mm

Yayın Yılı

2004

Voltage Rated Ac

50V

Genişlik

3.5mm

Parça Durumu

Active

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Contact Lengthmating

0.094 2.40mm

Number Of Positions Loaded

All

Kurşunsuz

Lead Free

Material

Nylon

Style

Board to Cable/Wire

Orientation

Right Angle

Pozisyon Sayısı

4

Max Voltage Rating Ac

50V

Contact Materials

Brass

Max Current Rating

1A

Max Voltage Rating Dc

50V

Yükseklik

3.7mm

Connector Type

Header
