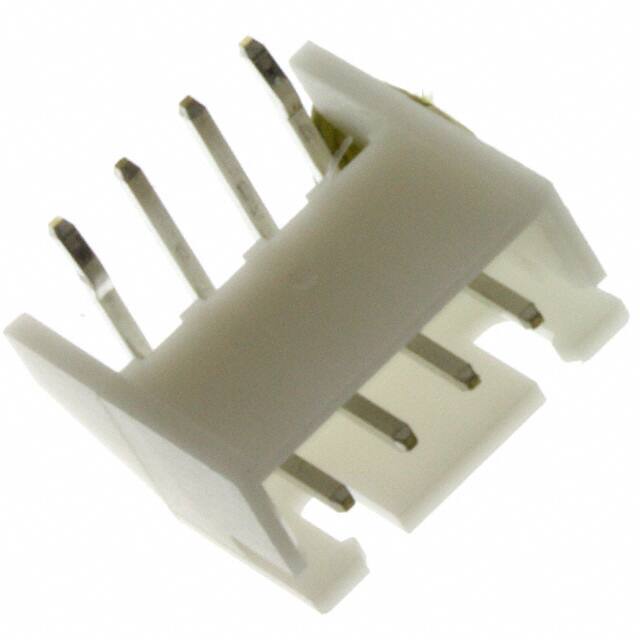

S4B-XH-A(LF)(SN)

Specifications

Insulation Height

0.240 6.10mm

Çalışma Sıcaklığı

-25°C~85°C

RoHS Durumu

RoHS Compliant

Housing Material

Polyamide

Insulation Color

Natural

Fabrika Tedarik Süresi

16 Weeks

Contact Shape

Square

Contact Length Post

0.134 3.40mm

Reach Svhc

No SVHC

Gender

Male

Maks. Çalışma Sıcaklığı

85°C

Uzunluk

12.4mm

Max Current Rating

3A

Pozisyon Sayısı

4

Max Voltage Rating Ac

250V

Contact Materials

Brass

Sıra Sayısı

1

Number Of Contacts

4

Connector Type

Header

Contact Resistance

20mOhm

Yükseklik

6.1mm

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Number Of Positions Loaded

All

Orientation

Right Angle

Style

Board to Cable/Wire

Insulation Materials

Polyamide (PA66), Nylon 6/6

Number Of Poles

4

Parça Durumu

Active

Genişlik

11.5mm

Contact Finish Mating

Tin

Lead Pitch

2.5mm

Nominal Gerilim

250V

Seri

XH

Shrouding

Shrouded - 4 Wall

Ambalaj

Bulk

Voltage Rated Ac

250V

Yayın Yılı

2010

Pitch Mating

0.098 2.50mm

Contact Type

Male Pin
