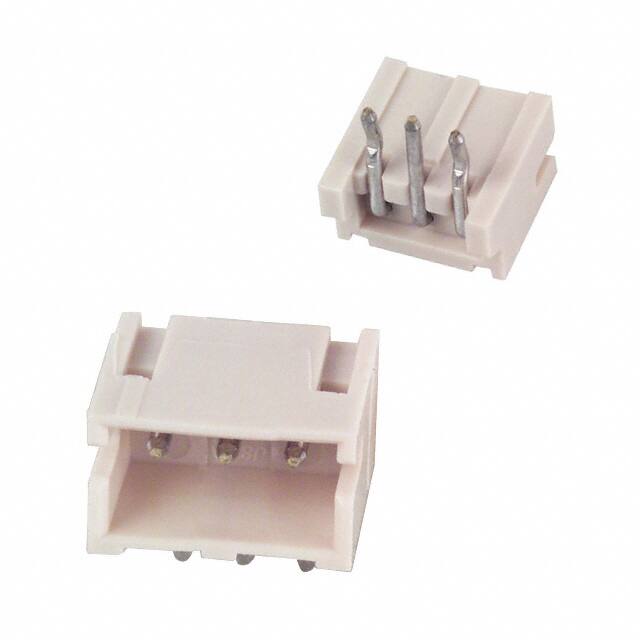

S3B-ZR(LF)(SN)

Specifications

Insulation Color

Natural

Contact Type

Male Pin

Ambalaj

Bulk

Uzunluk

3.048mm

Depth

6mm

Housing Material

Polyamide

Insulation Height

0.146 3.70mm

Insulation Resistance

500MOhm

Lead Pitch

1.5mm

Contact Resistance

30mOhm

Number Of Positions Loaded

All

Yayın Yılı

2004

Weight

28.349523g

Nem Hassasiyeti (MSL)

1 (Unlimited)

Panel Thickness

3.5mm

Connector Type

Header

Contact Materials

Brass

Akım Değeri

1A

Style

Board to Cable/Wire

Yükseklik

5.08mm

Material Flammability Rating

UL94 V-0

Rated Current Signal

1A

Housing Color

Beige

Genişlik

3.5mm

JESD-609 Kodu

e3

Shrouding

Shrouded - 4 Wall

Contact Shape

Circular

Voltage Rated Dc

50V

Parça Durumu

Active

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Wire Size Max

26 AWG

Sıra Sayısı

1

Renk

Natural, White

Çalışma Sıcaklığı

-25°C~85°C

Orientation

Right Angle

Reference Standard

UL, CSA

Seri

ZH

Pitch Mating

0.059 1.50mm

ECCN Kodu

EAR99

Voltage Rated Ac

50V
