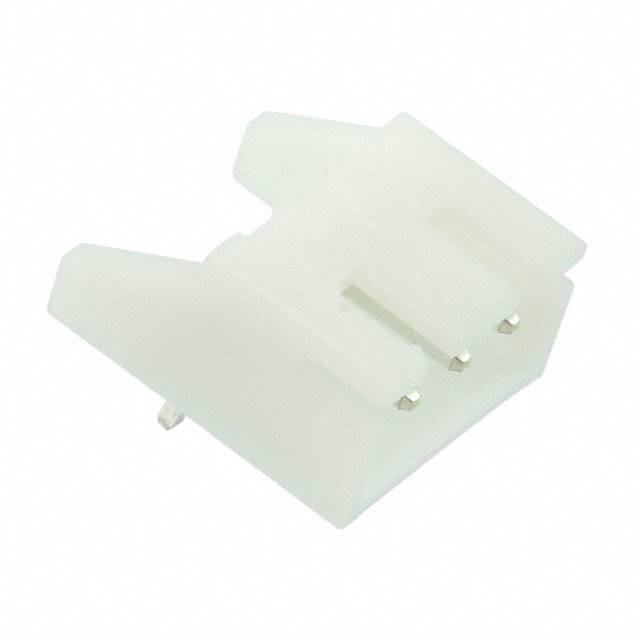

S3B-XH-A-1(LF)(SN)

Specifications

Din Conformance

NO

Terminal

Press-Fit, Solder

Shrouding

Shrouded - 4 Wall

JESD-609 Kodu

e3

Connector Type

Header

Option

GENERAL PURPOSE

Nominal Gerilim

250V

Ul Flammability Code

94V-0

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Contact Materials

Brass

Style

Board to Cable/Wire

Kurşunsuz

Lead Free

Additional Feature

SHROUDED, SIDE ENTRY

Sıra Sayısı

1

Çalışma Sıcaklığı

-25°C~85°C

Mixed Contacts

NO

Current Rating Amps

3A

Contact Shape

Square

Fastening Type

Detent Lock

Contact Finish Mating

Tin

Insulation Materials

Polyamide (PA66), Nylon 6/6

Iec Conformance

NO

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

16 Weeks

Montaj Tipi

Through Hole, Right Angle

Pozisyon Sayısı

3

RoHS Durumu

RoHS Compliant

Terminal Adımı

2.5mm

ECCN Kodu

EAR99

Insulation Color

Natural

Contact Type

Male Pin

Pitch Mating

0.098 2.50mm

Seri

XH

Ambalaj

Bulk

Montaj

Through Hole

Yayın Yılı

2012

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All
