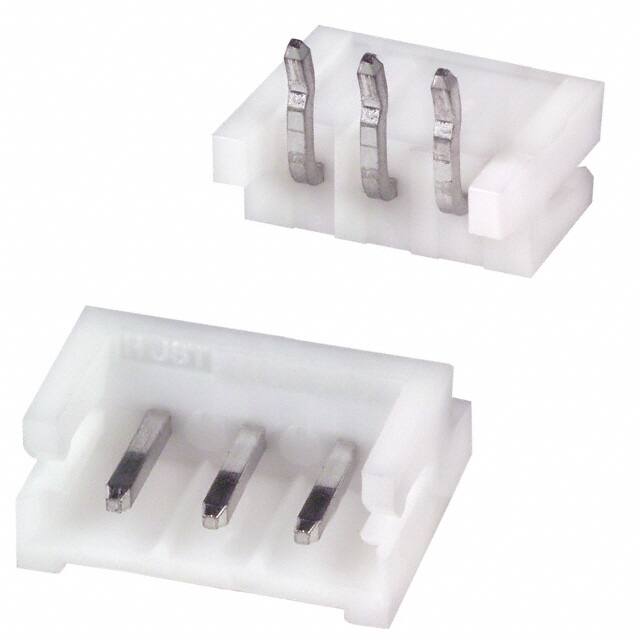

S3B-EH(LF)(SN)

Specifications

Mixed Contacts

NO

Fastening Type

Latch Lock

Contact Finish Mating

Tin

Fabrika Tedarik Süresi

16 Weeks

Iec Conformance

NO

Kurşunsuz

Lead Free

Reach Svhc

No SVHC

Contact Lengthmating

0.157 4.00mm

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Filter Feature

NO

Gender

Male

Terminal

Press-Fit, Solder

Din Conformance

NO

Mil Conformance

NO

Contact Length Post

0.126 3.20mm

Montaj

Through Hole

ECCN Kodu

EAR99

Seri

EH

Pitch Mating

0.098 2.50mm

Montaj Tipi

Through Hole, Right Angle

Pozisyon Sayısı

3

RoHS Durumu

RoHS Compliant

Contact Shape

Square

Insulation Materials

Polyamide (PA66), Nylon 6/6

Parça Durumu

Active

Additional Feature

POLARIZED, SHROUDED, SIDE ENTRY

Çalışma Sıcaklığı

-25°C~85°C

Orientation

Right Angle

Sıra Sayısı

1

Renk

White

Nominal Gerilim

250V

Connector Type

Header

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Akım Değeri

3A

Contact Materials

Brass

JESD-609 Kodu

e3

Shrouding

Shrouded - 3 Wall

Insulation Height

0.165 4.20mm
