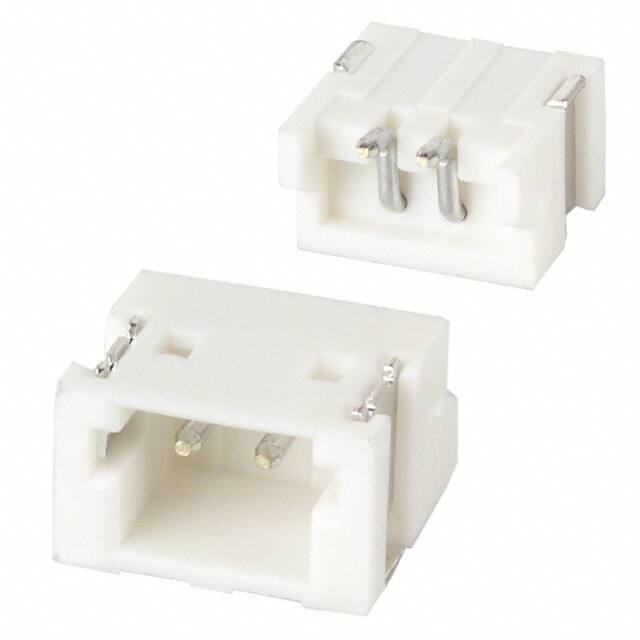

Specifications
- Yayın Yılı
- 2010
- Contact Type
- Male Pin
- Contact Finish Mating
- Tin
- Contact Shape
- Circular
- Akım Değeri
- 1A
- Uzunluk
- 6mm
- Housing Material
- Polyamide
- Gender
- Male
- Genişlik
- 3.5mm
- Contact Materials
- Brass
- Insulation Color
- Natural
- Terminal
- Solder
- Din Conformance
- NO
- Shrouding
- Shrouded - 4 Wall
- Manufacturer Package Identifier
- S2B-ZR-SM4A-TF(LF)(SN)
- HTS Kodu
- 8536.69.40.40
- Additional Feature
- SHROUDED, SIDE ENTRY
- Contact Resistance
- 30mOhm
- Style
- Board to Cable/Wire
- Housing Color
- Beige
- Kurşunsuz Kodu
- yes
- Depth
- 6.5mm
- Max Current Rating
- 1A
- Option
- GENERAL PURPOSE
- RoHS Durumu
- RoHS Compliant
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Max Voltage Rating Ac
- 50V
- Çalışma Sıcaklığı
- -25°C~85°C
- Mil Conformance
- NO
- Connector Type
- Header
- Total Number Of Contacts
- 2
- ECCN Kodu
- EAR99
- JESD-609 Kodu
- e3
- Iec Conformance
- NO
- Özellikler
- Solder Retention
- Fastening Type
- Detent Lock
- Orientation
- Right Angle
- Pitch Mating
- 0.059 1.50mm
- Filter Feature
- NO
- Insulation Height
- 0.146 3.70mm
