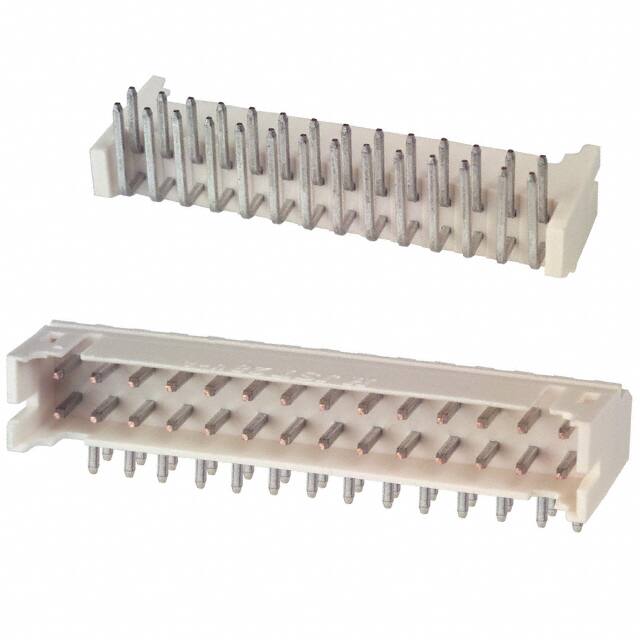

S28B-PHDSS(LF)(SN)

Specifications

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Seri

PHD

Connector Type

Header

Insulation Height

0.197 5.00mm

Row Spacing Mating

0.079 (2.00mm)

Material Flammability Rating

UL94 V-0

Current Rating Amps

3A

Fabrika Tedarik Süresi

16 Weeks

Contact Finish Mating

Tin

Contact Type

Male Pin

Parça Durumu

Active

Contact Lengthmating

0.114 2.90mm

Montaj Tipi

Through Hole, Right Angle

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.079 2.00mm

Filter Feature

NO

Çalışma Sıcaklığı

-25°C~85°C

Yayın Yılı

2005

Housing Color

Natural

Din Conformance

NO

Gender

Male

Iec Conformance

NO

Contact Length Post

0.118 3.00mm

Additional Feature

SIDE ENTRY, LOW PROFILE

Number Of Positions Loaded

All

Ambalaj

Bulk

Contact Materials

Copper Alloy

RoHS Durumu

RoHS Compliant

Nominal Gerilim

250V

HTS Kodu

8536.69.40.40

ECCN Kodu

EAR99

Contact Shape

Square

Mixed Contacts

NO

Option

GENERAL PURPOSE

Mil Conformance

NO

Pozisyon Sayısı

28

Lead Pitch

2mm
