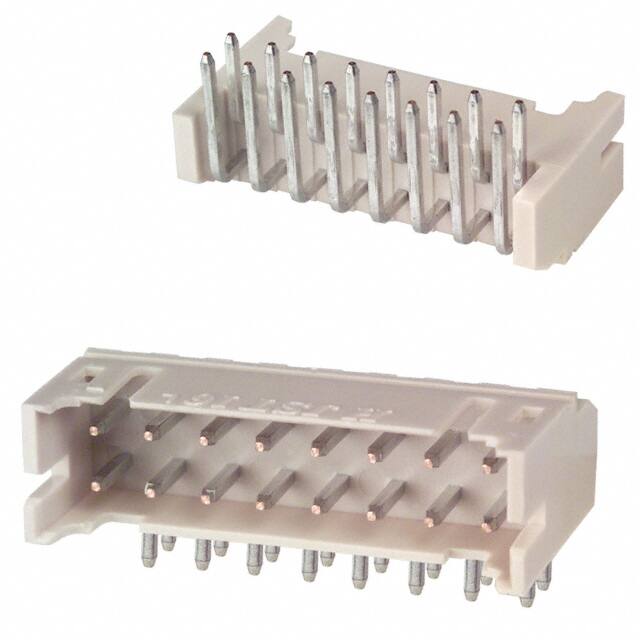

S16B-PHDSS(LF)(SN)

Specifications

Montaj Tipi

Through Hole, Right Angle

Insulation Color

Natural

Orientation

Right Angle

Ul Flammability Code

94V-0

Insulation Height

0.197 5.00mm

Uzunluk

17.9mm

Housing Material

Polyamide

Kurşunsuz Kodu

yes

Housing Color

Beige

Din Conformance

NO

Connector Type

Header

Depth

9.5mm

Option

GENERAL PURPOSE

Style

Board to Cable/Wire

Gender

Male

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-25°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Fabrika Tedarik Süresi

16 Weeks

Montaj

Through Hole

Mixed Contacts

NO

Pozisyon Sayısı

16

Ambalaj

Bulk

JESD-609 Kodu

e3

Iec Conformance

NO

Kurşunsuz

Lead Free

Yükseklik

9.5mm

Filter Feature

NO

Max Current Rating

3A

Seri

PHD

Additional Feature

SIDE ENTRY, LOW PROFILE

Akım Değeri

3A

Fastening Type

Detent Lock

Number Of Positions Loaded

All

Sıra Sayısı

2

Genişlik

5mm
