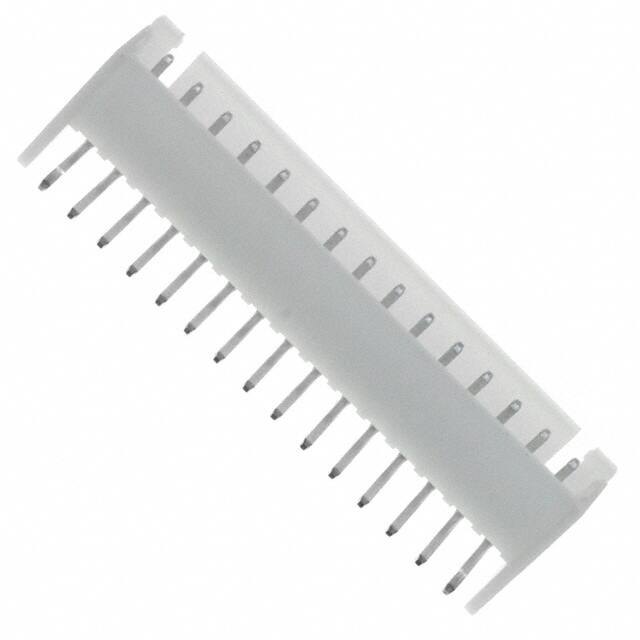

S15B-XH-A(LF)(SN)

Specifications

Montaj Tipi

Through Hole, Right Angle

JESD-609 Kodu

e3

Current Rating Amps

3A

Insulation Color

Natural

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

Iec Conformance

NO

Insulation Height

0.240 6.10mm

Terminal Adımı

2.5mm

Filter Feature

NO

Seri

XH

Additional Feature

SHROUDED, SIDE ENTRY

Fastening Type

Detent Lock

Kurşunsuz Kodu

yes

Nominal Gerilim

250V

Din Conformance

NO

Number Of Positions Loaded

All

Sıra Sayısı

1

Option

GENERAL PURPOSE

Connector Type

Header

RoHS Durumu

RoHS Compliant

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Contact Length Post

0.134 3.40mm

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA66), Nylon 6/6

ECCN Kodu

EAR99

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

HTS Kodu

8536.69.40.40

Contact Materials

Brass

Terminal

Press-Fit, Solder

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-25°C~85°C

Pitch Mating

0.098 2.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2010

Parça Durumu

Active

Contact Type

Male Pin
