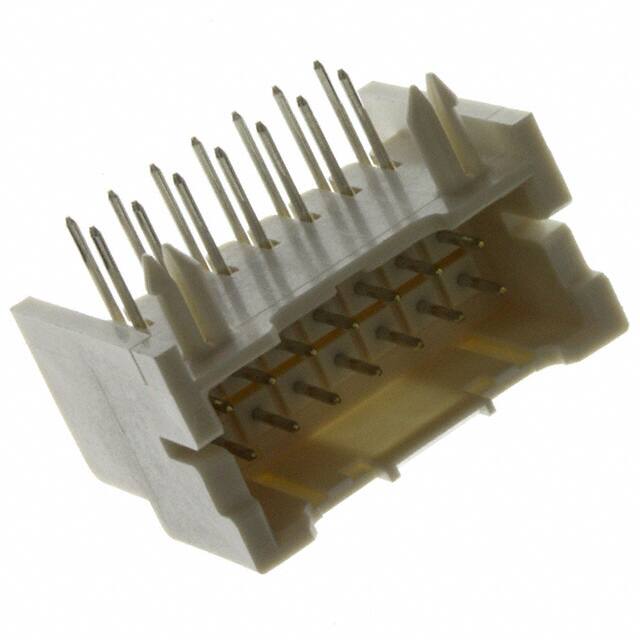

S14B-XADSS-N(LF)(SN)

Specifications

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Contact Length Post

0.134 3.40mm

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Contact Shape

Circular

Row Spacing Mating

0.098 (2.50mm)

Contact Materials

Copper Alloy

Terminal

Solder

Yayın Yılı

2010

Parça Durumu

Active

Pitch Mating

0.098 2.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-25°C~85°C

Contact Finish Mating

Tin

Montaj

Through Hole

Fabrika Tedarik Süresi

16 Weeks

Contact Type

Male Pin

Mixed Contacts

NO

Pozisyon Sayısı

14

Ambalaj

Bulk

Current Rating Amps

3A

JESD-609 Kodu

e3

Montaj Tipi

Through Hole, Right Angle

Ul Flammability Code

94V-0

Iec Conformance

NO

Insulation Color

Natural

Insulation Height

0.476 12.10mm

Filter Feature

NO

Additional Feature

SIDE ENTRY, SHROUDED, POLARIZED

Seri

XAD

Fastening Type

Locking Ramp

Din Conformance

NO

Number Of Positions Loaded

All

Sıra Sayısı

2

Nominal Gerilim

250V

Kurşunsuz Kodu

yes
