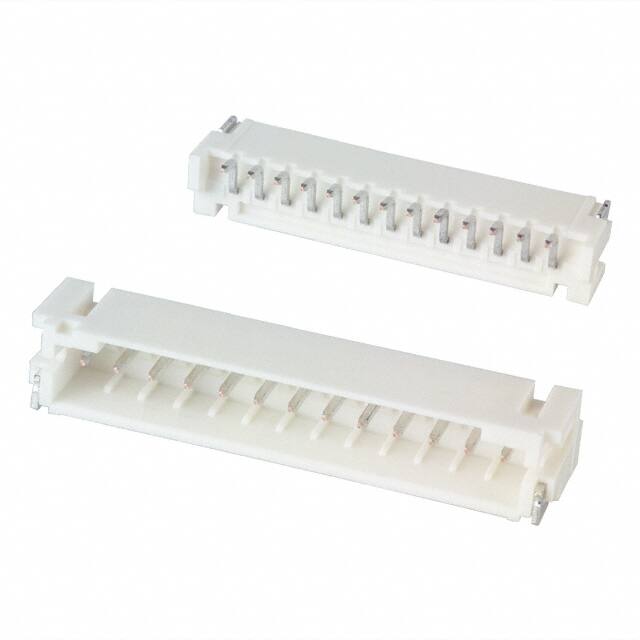

S13B-PH-SM4-TB(LF)(SN)

Specifications

Additional Feature

SIDE ENTRY

Housing Material

Nylon

Seri

PH

Fastening Type

Detent Lock

Din Conformance

NO

Number Of Positions Loaded

All

Sıra Sayısı

1

Nominal Gerilim

100V

Housing Color

Natural

Kurşunsuz Kodu

yes

Connector Type

Header

Option

GENERAL PURPOSE

Current Rating Amps

2A

JESD-609 Kodu

e3

Montaj Tipi

Surface Mount, Right Angle

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

Iec Conformance

NO

Insulation Height

0.217 5.51mm

Filter Feature

NO

Total Number Of Contacts

13

Özellikler

Solder Retention

Contact Materials

Copper Alloy

Terminal

Solder

Yayın Yılı

2005

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.079 2.00mm

Çalışma Sıcaklığı

-25°C~85°C

Contact Finish Mating

Tin

Montaj

Surface Mount

Fabrika Tedarik Süresi

18 Weeks

Contact Type

Male Pin

Mixed Contacts

NO

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

13

Style

Board to Cable/Wire

Lead Pitch

2mm

Material Flammability Rating

UL94 V-0

Gender

Male
