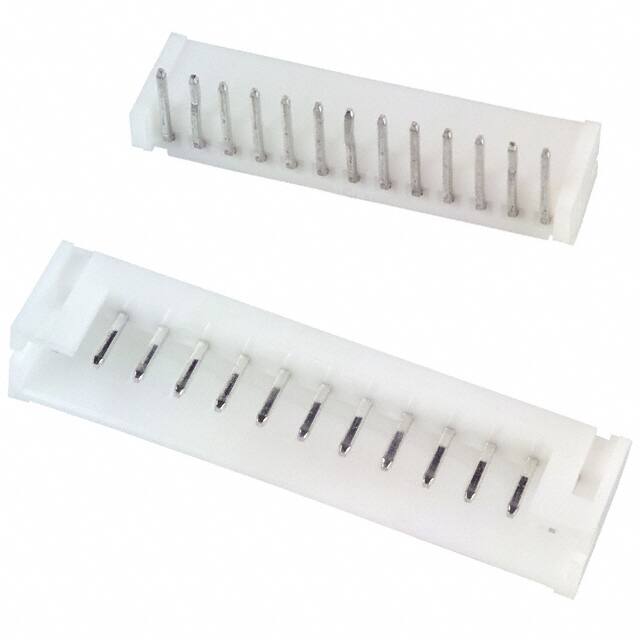

S13B-PH-K-S(LF)(SN)

Specifications

Iec Conformance

NO

Ul Flammability Code

94V-0

Kurşunsuz

Lead Free

JESD-609 Kodu

e3

Current Rating Amps

2A

Montaj Tipi

Through Hole, Right Angle

Filter Feature

NO

Insulation Height

0.189 4.80mm

Fastening Type

Detent Lock

Housing Material

Nylon

Additional Feature

SIDE ENTRY

Seri

PH

Option

GENERAL PURPOSE

Connector Type

Header

Sıra Sayısı

1

Number Of Positions Loaded

All

Din Conformance

NO

Housing Color

Natural

Kurşunsuz Kodu

yes

Nominal Gerilim

100V

Contact Lengthmating

0.130 3.30mm

Contact Length Post

0.134 3.40mm

Insulation Materials

Polyamide (PA66), Nylon 6/6

Gender

Male

Material Flammability Rating

UL94 V-0

Lead Pitch

2mm

Style

Board to Cable/Wire

RoHS Durumu

RoHS Compliant

HTS Kodu

8536.69.40.40

Contact Shape

Square

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

ECCN Kodu

EAR99

Yayın Yılı

2008

Parça Durumu

Active

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-25°C~85°C

Pitch Mating

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Brass
