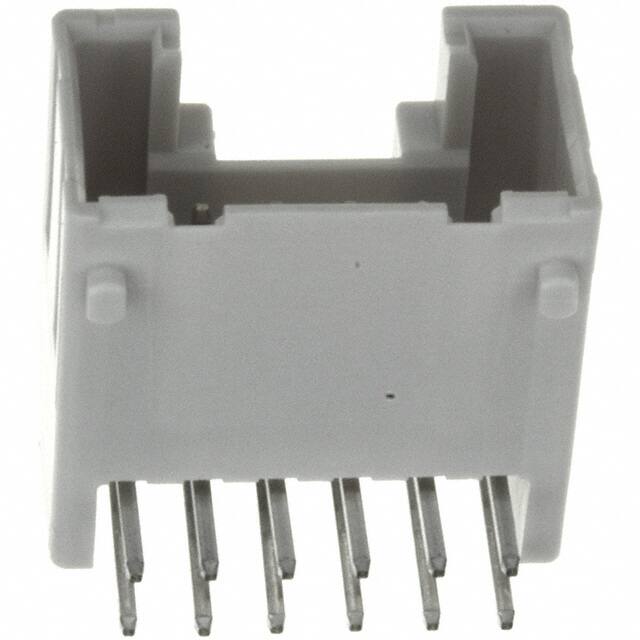

S12B-PUDSS-1(LF)(SN)

Specifications

REACH Uyumluluk Kodu

unknown

Number Of Positions Loaded

All

Max Current Rating

3A

Housing Color

Beige

Terminal

Solder

Contact Plating

Copper, Tin

Contact Finish Mating

Tin

Contact Type

Male Pin

Filter Feature

NO

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

Kurşunsuz Kodu

yes

Depth

12.7mm

Ul Flammability Code

94V-0

Insulation Height

0.335 8.51mm

Row Spacing Mating

0.079 (2.00mm)

Contact Length Post

0.118 3.00mm

Contact Resistance

20mOhm

Housing Material

Polyamide

Pozisyon Sayısı

12

Material Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Fabrika Tedarik Süresi

16 Weeks

Style

Board to Cable/Wire

Sıra Sayısı

2

Ambalaj

Bulk

Max Voltage Rating Ac

250V

Fastening Type

Latch Holder

Iec Conformance

NO

Kurşunsuz

Lead Free

Contact Shape

Square

Çalışma Sıcaklığı

-25°C~85°C

Orientation

Right Angle

Connector Type

Header

Özellikler

Board Guide

Nominal Gerilim

250V

Montaj Tipi

Through Hole, Right Angle

Mixed Contacts

NO

Din Conformance

NO

JESD-609 Kodu

e3
