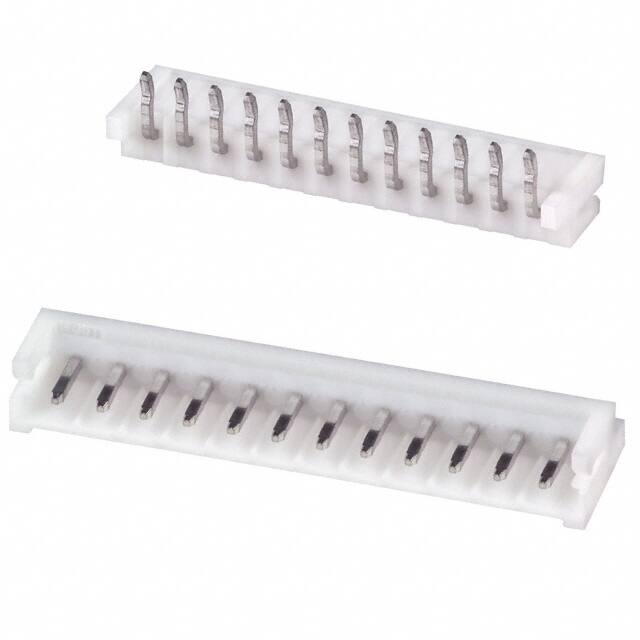

S12B-EH(LF)(SN)

Specifications

Shrouding

Shrouded - 3 Wall

Fabrika Tedarik Süresi

16 Weeks

Contact Length Post

0.126 3.20mm

Montaj

Through Hole

Seri

EH

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

12

Housing Material

Nylon

Insulation Color

Natural

Mil Conformance

NO

Insulation Materials

Polyamide (PA66), Nylon 6/6

Insulation Height

0.165 4.20mm

Gender

Male

Kurşunsuz

Lead Free

Pitch Mating

0.098 2.50mm

Fastening Type

Latch Lock

Yayın Yılı

2004

Parça Durumu

Active

Iec Conformance

NO

Additional Feature

POLARIZED, SHROUDED, SIDE ENTRY

Contact Materials

Brass

Ambalaj

Bulk

Sıra Sayısı

1

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

White

Orientation

Right Angle

Number Of Positions Loaded

All

Contact Lengthmating

0.157 4.00mm

Çalışma Sıcaklığı

-25°C~85°C

Akım Değeri

3A

Contact Shape

Square

Kurşunsuz Kodu

yes

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole, Right Angle

Lead Pitch

2.5mm

Option

GENERAL PURPOSE

Din Conformance

NO

JESD-609 Kodu

e3
