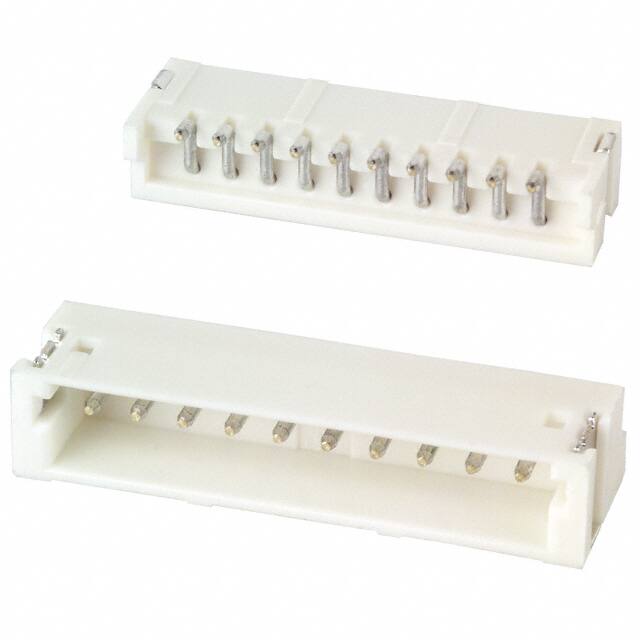

S10B-ZR-SM4A-TF(LF)(SN)

Specifications

Ul Flammability Code

94V-0

Fastening Type

Detent Lock

Connector Type

Header

Mixed Contacts

NO

Contact Shape

Circular

Number Of Positions Loaded

All

Additional Feature

SHROUDED, SIDE ENTRY

Material Flammability Rating

UL94 V-0

Ambalaj

Tape & Reel (TR)

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

RoHS Durumu

RoHS Compliant

Terminal

Solder

Insulation Materials

Polyamide (PA6T), Nylon 6T

Yayın Yılı

2010

Din Conformance

NO

Akım Değeri

1A

Seri

ZH

Reach Svhc

Unknown

JESD-609 Kodu

e3

Montaj Tipi

Surface Mount, Right Angle

Özellikler

Solder Retention

Filter Feature

NO

Option

GENERAL PURPOSE

Pitch Mating

0.059 1.50mm

Çalışma Sıcaklığı

-25°C~85°C

HTS Kodu

8536.69.40.40

Iec Conformance

NO

Housing Color

Natural

Total Number Of Contacts

10

Lead Pitch

1.5mm

Housing Material

Nylon

Contact Type

Male Pin

Kurşunsuz Kodu

yes

Genişlik

3.5mm

Nominal Gerilim

50V

ECCN Kodu

EAR99

Contact Finish Mating

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.146 3.70mm
