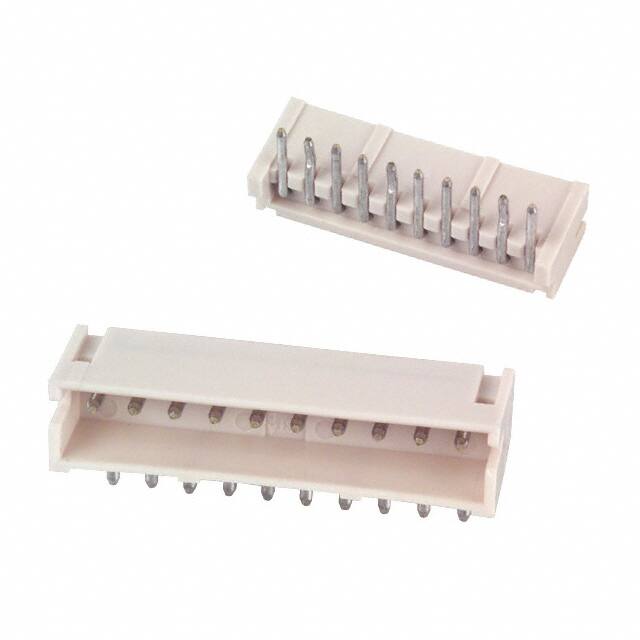

S10B-ZR(LF)(SN)

Specifications

Housing Color

Natural

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Çalışma Sıcaklığı

-25°C~85°C

Orientation

Right Angle

Housing Material

Nylon

Contact Type

Male Pin

Lead Pitch

1.5mm

Contact Lengthmating

0.094 2.40mm

Filter Feature

NO

Pitch Mating

0.059 1.50mm

Option

GENERAL PURPOSE

Style

Board to Cable/Wire

Gender

Male

Pozisyon Sayısı

10

Uzunluk

16.5mm

Yükseklik

7.2mm

Kurşunsuz

Lead Free

Montaj

Through Hole

Sıra Sayısı

1

ECCN Kodu

EAR99

Contact Finish Mating

Tin

Genişlik

3.5mm

Nominal Gerilim

50V

Parça Durumu

Active

Fabrika Tedarik Süresi

18 Weeks

Contact Materials

Brass

Insulation Height

0.146 3.70mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.106 2.69mm

Number Of Positions Loaded

All

Contact Shape

Circular

Ul Flammability Code

94V-0

Fastening Type

Detent Lock

Connector Type

Header

Mixed Contacts

NO

Din Conformance

NO

Yayın Yılı

2005

Montaj Tipi

Through Hole, Right Angle

JESD-609 Kodu

e3
