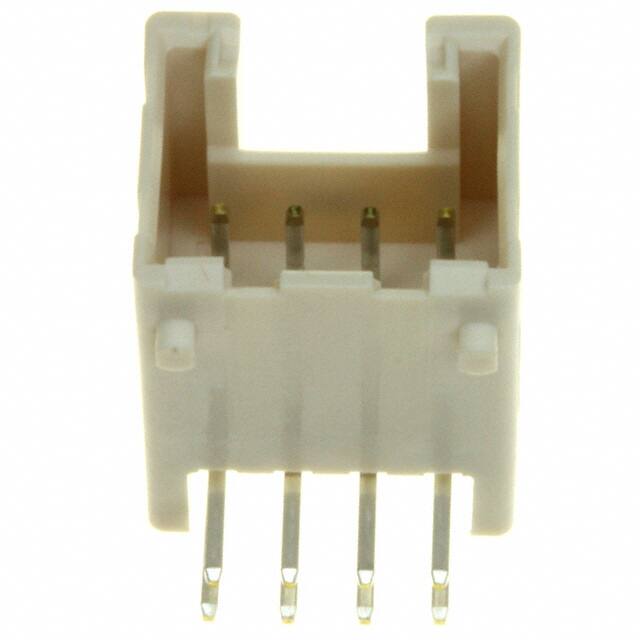

S08B-PUDSS-1(LF)(SN)

Specifications

RoHS Durumu

RoHS Compliant

Özellikler

Board Guide

Montaj Tipi

Through Hole, Right Angle

Pozisyon Sayısı

8

Ambalaj

Bulk

Insulation Color

Natural

Contact Type

Male Pin

Pitch Mating

0.079 2.00mm

Seri

PUD

Yayın Yılı

2009

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Montaj

Through Hole

Mil Conformance

NO

Kurşunsuz Kodu

yes

Contact Length Post

0.118 3.00mm

Insulation Height

0.335 8.51mm

JESD-609 Kodu

e3

Row Spacing Mating

0.079 (2.00mm)

Shrouding

Shrouded - 4 Wall

Gender

Male

Din Conformance

NO

Terminal

Solder

Ul Flammability Code

94V-0

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Contact Materials

Copper Alloy

Style

Board to Cable/Wire

Connector Type

Header

Option

GENERAL PURPOSE

Nominal Gerilim

250V

Additional Feature

POLARIZED, SIDE ENTRY, SHROUDED

Sıra Sayısı

2

Çalışma Sıcaklığı

-25°C~85°C

Reach Svhc

Unknown

Kurşunsuz

Lead Free

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Parça Durumu

Active

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled
