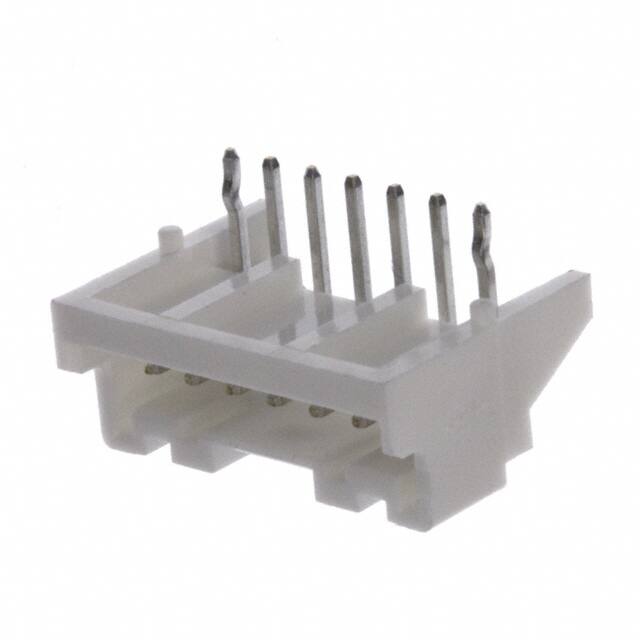

S07B-PASK-2(LF)(SN)

Specifications

Nominal Gerilim

250V

Connector Type

Header

Style

Board to Cable/Wire

Akım Değeri

3A

Contact Materials

Copper Alloy

Yükseklik

6.5mm

Material Flammability Rating

UL94 V-0

Housing Color

White

Genişlik

11.7mm

Shrouding

Shrouded - 4 Wall

JESD-609 Kodu

e3

Contact Shape

Square

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Parça Durumu

Active

Orientation

Right Angle

Çalışma Sıcaklığı

-25°C~85°C

Sıra Sayısı

1

Additional Feature

SHROUDED, SIDE ENTRY

Insulation Color

Natural

Contact Type

Male Pin

Uzunluk

16mm

Ambalaj

Bulk

Housing Material

Nylon

Insulation Height

0.256 6.50mm

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2001

Option

GENERAL PURPOSE

Filter Feature

NO

Ul Flammability Code

94V-0

Terminal

Kinked Pin, Solder

Din Conformance

NO

Mixed Contacts

NO

Fabrika Tedarik Süresi

18 Weeks

Iec Conformance

NO

Contact Finish Mating

Tin

Fastening Type

Locking Ramp

Kurşunsuz

Lead Free

Contact Lengthmating

0.126 3.20mm
