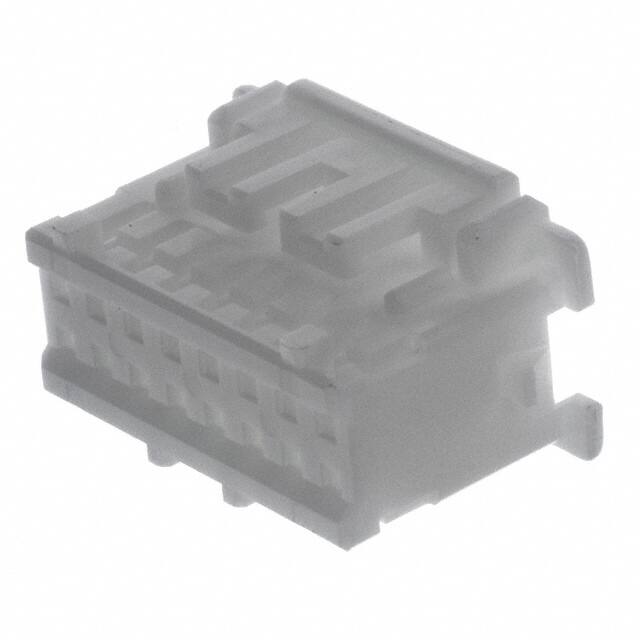

PADP-16V-1-S

Specifications

Genişlik

10mm

HTS Kodu

8536.69.40.40

Kurşunsuz Kodu

yes

Seri

PAD

Contact Finish Mating

NOT SPECIFIED

Pozisyon Sayısı

16

Mil Conformance

NO

Total Number Of Contacts

16

Iec Conformance

NO

Mixed Contacts

NO

Option

GENERAL PURPOSE

Housing Material

Polyamide

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fastening Type

Latch Lock

Pitch

0.079 2.00mm

Parça Durumu

Active

Additional Feature

POLARIZED

ECCN Kodu

EAR99

Connector Type

Receptacle

Montaj Tipi

Free Hanging (In-Line)

RoHS Durumu

RoHS Compliant

Reach Svhc

Unknown

Filter Feature

NO

Sıra Sayısı

2

Kurşunsuz

Lead Free

Contact Type

Female Socket

Ul Flammability Code

94V-0

Note

Contacts Not Included

Uzunluk

18mm

Contact Termination

Crimp

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Contact Materials

NOT SPECIFIED

Din Conformance

NO

Depth

11mm

Orientation

Straight

Fabrika Tedarik Süresi

16 Weeks

Montaj

Cable, Free Hanging

Row Spacing

0.079 (2.00mm)

Yayın Yılı

2010
