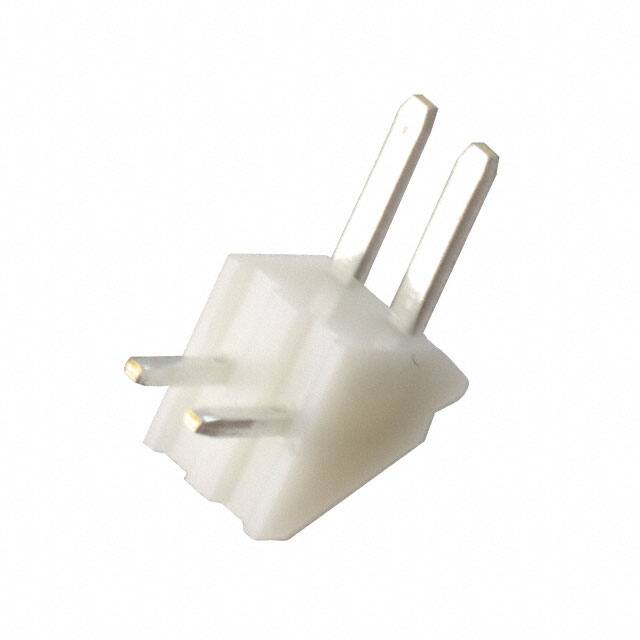

BS2P-SHF-1AA(LF)(SN)

Specifications

Akım Değeri

3A

Insulation Height

0.220 5.60mm

Style

Board to Cable/Wire

Filter Feature

NO

Insulation Color

Natural

Connector Type

Header

Montaj Tipi

Through Hole, Right Angle

Ul Flammability Code

94V-0

Pitch Mating

0.098 2.50mm

Nominal Gerilim

250V

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-25°C~85°C

Contact Type

Male Pin

Option

GENERAL PURPOSE

Pozisyon Sayısı

2

Parça Durumu

Active

Insulation Materials

Polyamide (PA66), Nylon 6/6

Kurşunsuz

Lead Free

Sıra Sayısı

1

Kurşunsuz Kodu

yes

Contact Lengthmating

0.217 5.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Additional Feature

SIDE ENTRY

Din Conformance

NO

Mil Conformance

NO

Iec Conformance

NO

Material Flammability Rating

UL94 V-0

Terminal

Solder

Fabrika Tedarik Süresi

16 Weeks

Contact Shape

Square

Orientation

Right Angle

Shrouding

Unshrouded

Ambalaj

Bulk

Montaj

Through Hole

Contact Finish Mating

Tin

Fastening Type

Friction Lock

Mixed Contacts

NO

Contact Length Post

0.118 3.00mm

RoHS Durumu

RoHS Compliant

JESD-609 Kodu

e3
