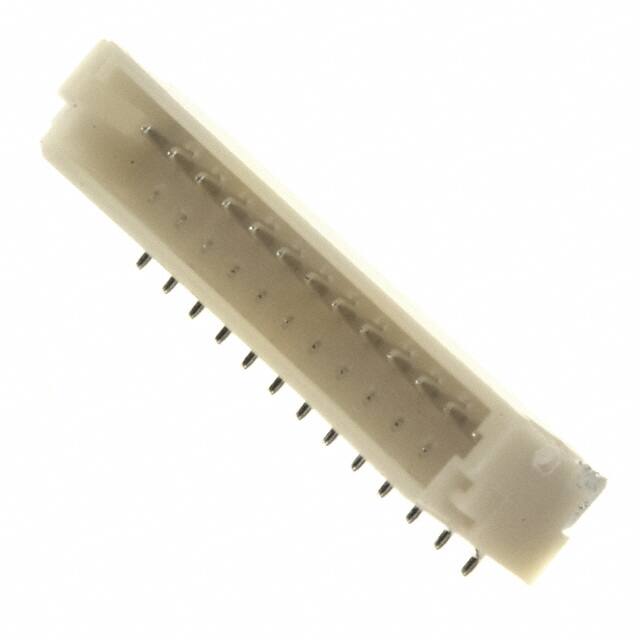

BM13B-SRSS-TB(LF)(SN)

Specifications

Mil Conformance

NO

Ul Flammability Code

94V-0

HTS Kodu

8536.69.40.40

Terminal

Solder

Style

Board to Cable/Wire

Iec Conformance

NO

JESD-609 Kodu

e3

Stack Height Mating

4.9mm

Mixed Contacts

NO

Fastening Type

Push-Pull

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Montaj Tipi

Surface Mount

Seri

SR

Özellikler

Solder Retention

Insulation Materials

Polyamide (PA), Nylon

Nominal Gerilim

50V

Kurşunsuz Kodu

yes

Additional Feature

TOP ENTRY

Ambalaj

Tape & Reel (TR)

Insulation Height

0.167 4.25mm

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Connector Type

Header

Sıra Sayısı

1

Yayın Yılı

2005

Fabrika Tedarik Süresi

16 Weeks

Contact Type

Male Pin

ECCN Kodu

EAR99

Akım Değeri

1A

Parça Durumu

Active

Pitch Mating

0.039 1.00mm

Option

GENERAL PURPOSE

Shrouding

Shrouded - 4 Wall

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Tin

Orientation

Straight
