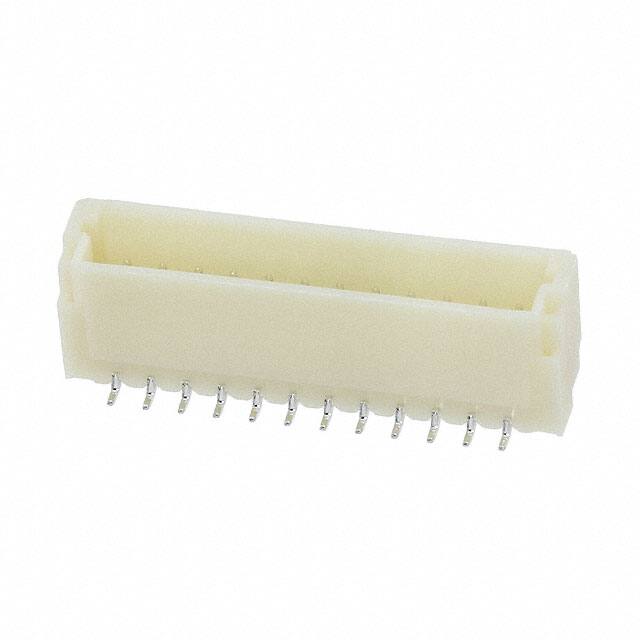

BM12B-SRSS-TBT(LF)(SN)

Specifications

Total Number Of Contacts

12

Montaj

Surface Mount

Pozisyon Sayısı

12

Current Rating Amps

1A

Çalışma Sıcaklığı

-25°C~85°C

Kurşunsuz

Lead Free

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.039 1.00mm

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Tin

Contact Type

Male Pin

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Insulation Height

0.167 4.25mm

Connector Type

Header

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Fabrika Tedarik Süresi

18 Weeks

Yayın Yılı

2010

Özellikler

Pick and Place, Solder Retention

Seri

SR

Insulation Materials

Polyamide (PA), Nylon

Additional Feature

LOW PROFILE; TOP ENTRY

Kurşunsuz Kodu

yes

Nominal Gerilim

50V

Mixed Contacts

NO

Stack Height Mating

4.9mm

REACH Uyumluluk Kodu

unknown

Fastening Type

Push-Pull

Filter Feature

NO

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Mil Conformance

NO

Terminal

Solder
