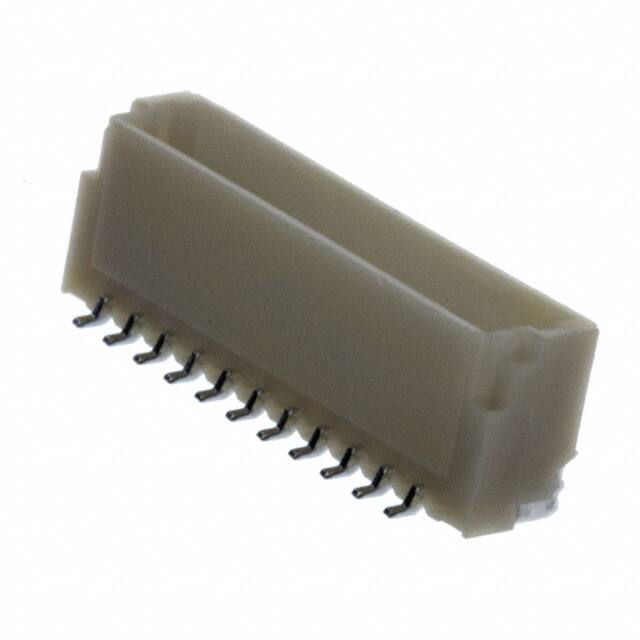

BM11B-SRSS-TB(LF)(SN)

Specifications

Kurşunsuz Kodu

yes

Additional Feature

TOP ENTRY

Nominal Gerilim

50V

Insulation Materials

Polyamide (PA), Nylon

Özellikler

Solder Retention

Seri

SR

Fabrika Tedarik Süresi

16 Weeks

Yayın Yılı

2005

Connector Type

Header

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Insulation Height

0.167 4.25mm

Ambalaj

Tape & Reel (TR)

JESD-609 Kodu

e3

Iec Conformance

NO

Style

Board to Cable/Wire

Terminal

Solder

HTS Kodu

8536.69.40.40

Ul Flammability Code

94V-0

Mil Conformance

NO

Montaj Tipi

Surface Mount

Filter Feature

NO

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Stack Height Mating

4.9mm

Mixed Contacts

NO

Kurşunsuz

Lead Free

Housing Material

Nylon

Çalışma Sıcaklığı

-25°C~85°C

Orientation

Straight

Pozisyon Sayısı

11

Montaj

Surface Mount, Termination

Total Number Of Contacts

11

Housing Color

Natural

Akım Değeri

1A

Contact Type

Male Pin
