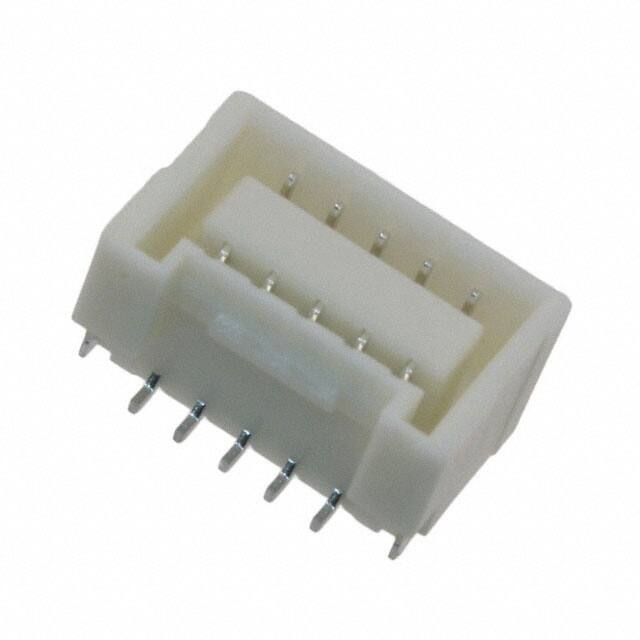

BM10B-ZPDSS-TF(LF)(SN)

Specifications

Çalışma Sıcaklığı

-25°C~85°C

Total Number Of Contacts

10

Pozisyon Sayısı

10

Current Rating Amps

2A

Contact Type

Outer Shroud Contact

Pitch Mating

0.059 1.50mm

Option

GENERAL PURPOSE

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Terminal Adımı

1.5mm

Insulation Materials

Polyamide (PA), Nylon

Seri

ZPD

Özellikler

Solder Retention

Nominal Gerilim

100V

Contact Gender

MALE

Kurşunsuz Kodu

yes

Contact Materials

Copper Alloy

Insulation Height

0.219 5.56mm

Number Of Positions Loaded

All

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Yayın Yılı

2010

Fabrika Tedarik Süresi

16 Weeks

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Connector Type

Header

Sıra Sayısı

2

Ul Flammability Code

94V-0

Terminal

Solder

Mil Conformance

NO

Style

Board to Cable/Wire

Iec Conformance

NO

JESD-609 Kodu

e3

Mixed Contacts

NO

Stack Height Mating

9.5mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Rectangular

Filter Feature

NO
