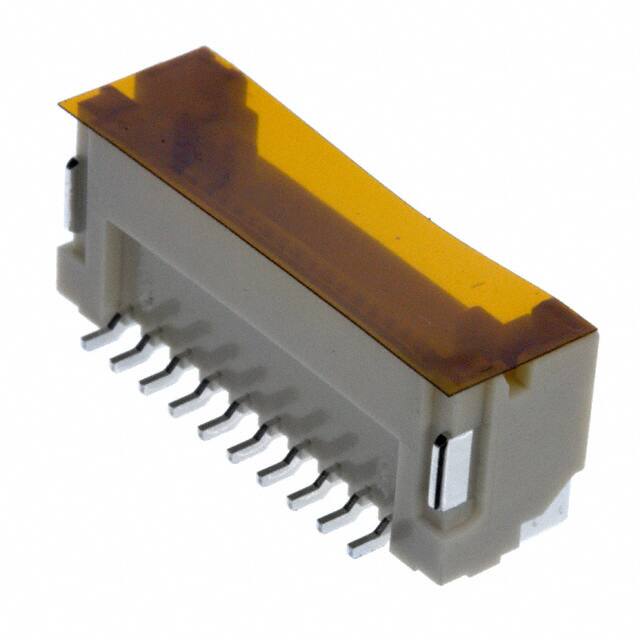

BM10B-ZESS-TBT(LF)(SN)

Specifications

Total Number Of Contacts

10

Montaj

Surface Mount

Pozisyon Sayısı

10

Orientation

Straight

Çalışma Sıcaklığı

-25°C~85°C

Kurşunsuz

Lead Free

Parça Durumu

Active

Option

GENERAL PURPOSE

Pitch Mating

0.059 1.50mm

Shrouding

Shrouded - 4 Wall

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Tin

Contact Type

Outer Shroud Contact

Akım Değeri

2A

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Contact Materials

Copper Alloy

Insulation Height

0.295 7.50mm

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Connector Type

Header

Sıra Sayısı

1

Yayın Yılı

2011

Fabrika Tedarik Süresi

16 Weeks

Seri

ZE

Özellikler

Pick and Place, Solder Retention

Insulation Materials

Polyamide (PA), Nylon

Nominal Gerilim

100V

Contact Gender

MALE

Additional Feature

SHROUDED, TOP ENTRY

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Stack Height Mating

9.4mm

REACH Uyumluluk Kodu

unknown

Fastening Type

Locking Ramp

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Rectangular

Filter Feature

NO

Montaj Tipi

Surface Mount
