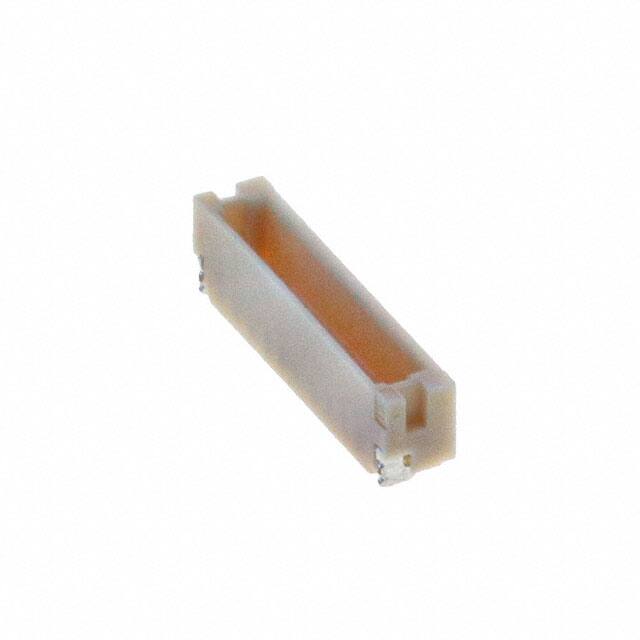

BM10B-SURS-TF(LF)(SN)

Specifications

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Tin

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.031 0.80mm

Option

GENERAL PURPOSE

Contact Type

Outer Shroud Contact

ECCN Kodu

EAR99

Pozisyon Sayısı

10

Current Rating Amps

0.2A 0.5A

Total Number Of Contacts

10

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-25°C~85°C

Yükseklik

2.7mm

Genişlik

2mm

Fastening Type

Push-Pull

Uzunluk

10.2mm

Montaj Tipi

Surface Mount

Filter Feature

NO

Contact Shape

Rectangular

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Stack Height Mating

3.95mm

Iec Conformance

NO

Style

Board to Cable/Wire

Mil Conformance

NO

Terminal

Solder

HTS Kodu

8536.69.40.40

Ul Flammability Code

94V-0

Connector Type

Header

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Fabrika Tedarik Süresi

16 Weeks

Yayın Yılı

2010

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Number Of Positions Loaded

All

Insulation Height

0.106 2.70mm

Contact Materials

Copper Alloy
