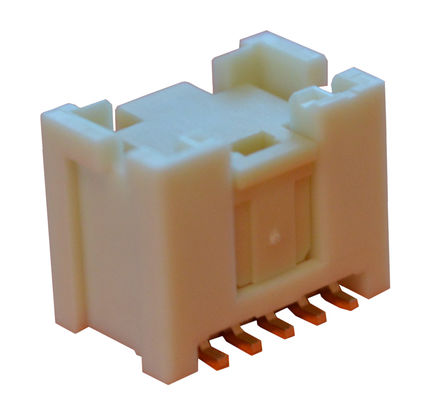

BM10B-PUDSS-TFC(LF)(SN)

Specifications

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Tin

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.079 2.00mm

Option

GENERAL PURPOSE

Contact Type

Male Pin

Montaj

Surface Mount

Pozisyon Sayısı

10

Current Rating Amps

3A

Total Number Of Contacts

10

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-25°C~85°C

Fastening Type

Latch Holder

Montaj Tipi

Surface Mount

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Stack Height Mating

11mm

Mixed Contacts

NO

Iec Conformance

NO

JESD-609 Kodu

e3

Style

Board to Cable/Wire

Mil Conformance

NO

Terminal

Solder

Ul Flammability Code

94V-0

Connector Type

Header

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Fabrika Tedarik Süresi

16 Weeks

Yayın Yılı

2011

Ambalaj

Bulk

Insulation Color

Natural

Number Of Positions Loaded

All

Insulation Height

0.425 10.80mm

Contact Materials

Copper Alloy

Kurşunsuz Kodu

yes

Nominal Gerilim

250V

Seri

PUD
