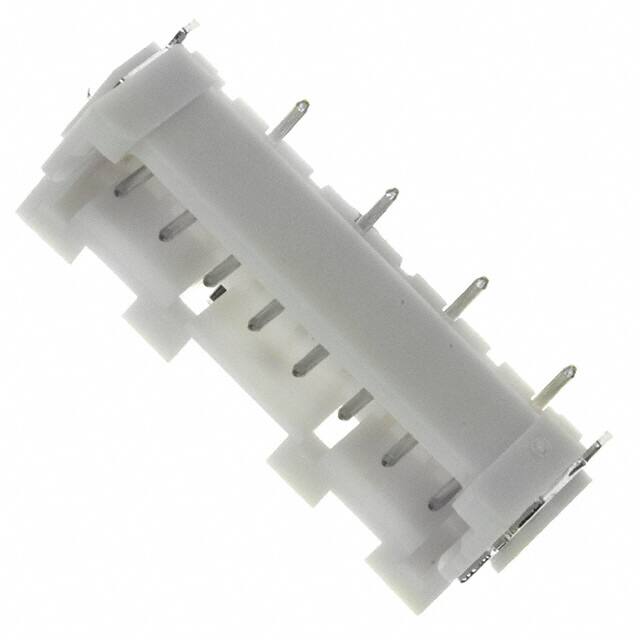

BM08B-XASS-TF(LF)(SN)

Specifications

Çalışma Sıcaklığı

-25°C~85°C

Kurşunsuz

Lead Free

Total Number Of Contacts

8

Montaj

Surface Mount

Pozisyon Sayısı

8

Current Rating Amps

3A

Contact Type

Male Pin

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.098 2.50mm

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Tin

Özellikler

Solder Retention

Seri

XA

Insulation Materials

Polyamide (PA), Nylon

Terminal Adımı

2.5mm

Additional Feature

TOP ENTRY, SHROUDED

Kurşunsuz Kodu

yes

Nominal Gerilim

250V

Ambalaj

Tape & Reel (TR)

Insulation Color

Natural

Number Of Positions Loaded

All

Insulation Height

0.370 9.40mm

Contact Materials

Copper Alloy

Sıra Sayısı

1

Connector Type

Header

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

18 Weeks

Yayın Yılı

2008

Mil Conformance

NO

Terminal

Solder

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Iec Conformance

NO

Style

Board to Cable/Wire

Stack Height Mating

11.9mm

Mixed Contacts

NO

Fastening Type

Locking Ramp
