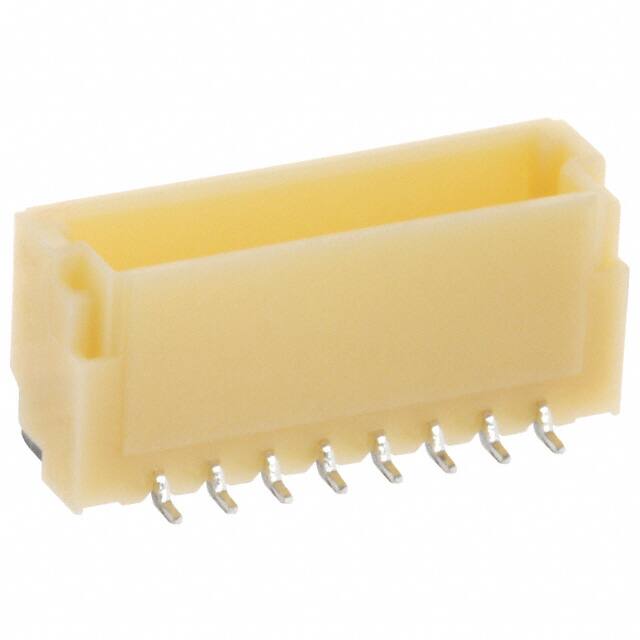

BM08B-SRSS-TB(LF)(SN)

Specifications

Uzunluk

10mm

Contact Shape

Square

Mixed Contacts

NO

Stack Height Mating

4.9mm

Style

Board to Cable/Wire

Iec Conformance

NO

Ul Flammability Code

94V-0

Gender

Male

Din Conformance

NO

Sıra Sayısı

1

Flammability Rating

UL94 V-0

Insulation Height

0.167 4.25mm

Kurşunsuz Kodu

yes

Seri

SR

Insulation Materials

Polyamide (PA), Nylon

Max Voltage Rating Ac

50V

Max Current Rating

1A

Contact Type

Male Pin

Montaj

Surface Mount

Pozisyon Sayısı

8

Çalışma Sıcaklığı

-25°C~85°C

Depth

2.9mm

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Montaj Tipi

Surface Mount

JESD-609 Kodu

e2

Mil Conformance

NO

Terminal

Solder

Material Flammability Rating

UL94 V-0

Connector Type

Header

Yayın Yılı

2005

Fabrika Tedarik Süresi

16 Weeks

Lead Pitch

1mm

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Additional Feature

TOP ENTRY

Özellikler

Solder Retention
