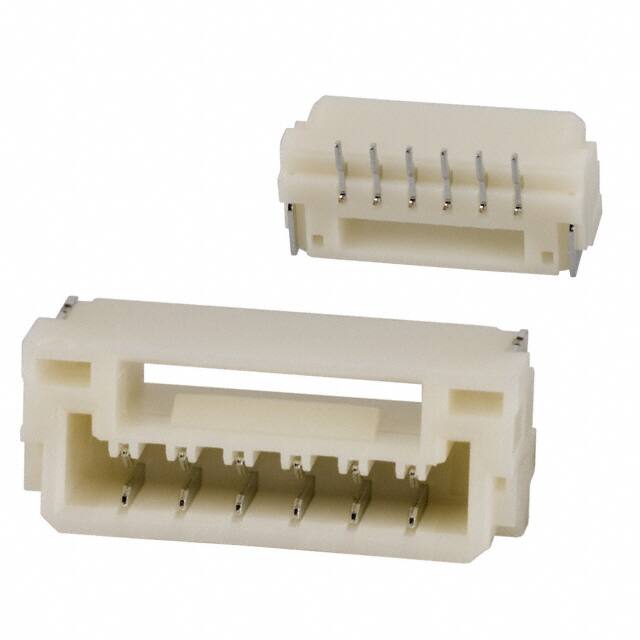

BM06B-GHS-TBT(LF)(SN)(N)

Specifications

Nominal Gerilim

50V

Insulation Materials

Polyamide (PA9T), Nylon 9T

Özellikler

Pick and Place, Solder Retention

Seri

GH

Fabrika Tedarik Süresi

16 Weeks

Yayın Yılı

2011

Connector Type

Header

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Insulation Height

0.159 4.05mm

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Style

Board to Cable/Wire

Terminal

Solder

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Rectangular

Fastening Type

Locking Ramp

Uzunluk

10.75mm

Stack Height Mating

7.3mm

Housing Material

Polyamide

Çalışma Sıcaklığı

-25°C~85°C

Kurşunsuz

Lead Free

Orientation

Straight

Depth

4.25mm

Pozisyon Sayısı

6

Montaj

Surface Mount

Housing Color

Beige

Contact Plating

Copper, Tin

Contact Resistance

50mOhm

Contact Type

Outer Shroud Contact

Contact Finish Mating

Tin

Max Voltage Rating Ac

50V

RoHS Durumu

RoHS Compliant

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.049 1.25mm

Max Current Rating

1A

Parça Durumu

Active
