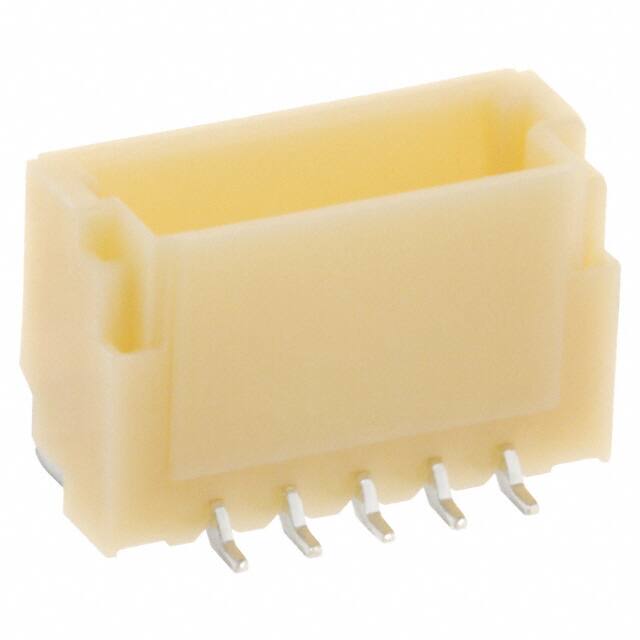

BM05B-SRSS-TB

Specifications

Contact Plating

Tin

Current Rating Amps

1A

Montaj

Surface Mount

Orientation

Vertical

Housing Material

Nylon

Çalışma Sıcaklığı

-25°C~85°C

Kurşunsuz

Contains Lead

Option

GENERAL PURPOSE

Pitch Mating

0.039 1.00mm

Shrouding

Shrouded - 4 Wall

Parça Durumu

Obsolete

Contact Finish Mating

Tin-Lead

RoHS Durumu

Non-RoHS Compliant

ECCN Kodu

EAR99

Contact Type

Male Pin

Contact Materials

Copper Alloy

Insulation Height

0.167 4.25mm

Number Of Positions Loaded

All

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Number Of Contacts

5

Yayın Yılı

2002

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Connector Type

Header

Sıra Sayısı

1

Insulation Materials

Polyamide (PA), Nylon

Seri

SR

Özellikler

Solder Retention

Nominal Gerilim

50V

Additional Feature

TOP ENTRY

Kurşunsuz Kodu

no

Mixed Contacts

NO

Stack Height Mating

4.9mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Filter Feature

NO

Montaj Tipi

Surface Mount

Fastening Type

Push-Pull

Ul Flammability Code

94V-0
