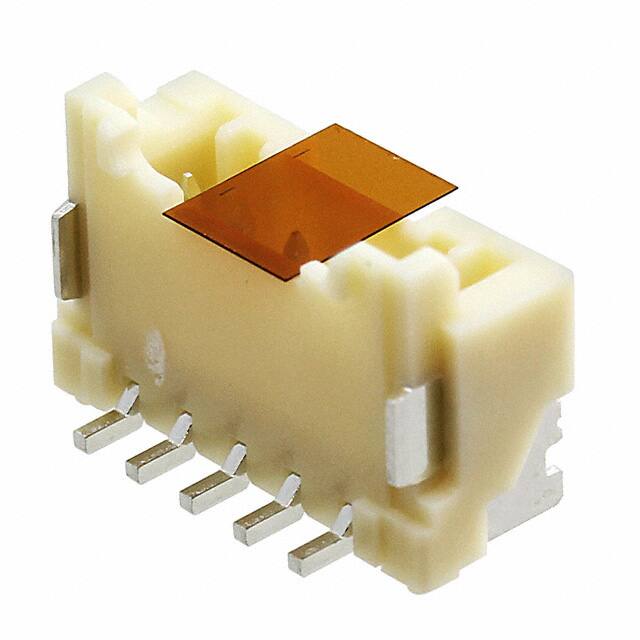

BM05B-PASS-1-TFT(LF)(SN)

Specifications

Ul Flammability Code

94V-0

Gender

Male

Terminal

Solder

Mil Conformance

NO

Style

Board to Cable/Wire

Iec Conformance

NO

Stack Height Mating

11.1mm 16mm 16.2mm

Mixed Contacts

NO

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Filter Feature

NO

Fastening Type

Locking Ramp

Terminal Adımı

2mm

Insulation Materials

Polyamide (PA), Nylon

Seri

PA

Özellikler

Board Guide, Pick and Place, Solder Retention

Nominal Gerilim

250V

Kurşunsuz Kodu

yes

Insulation Height

0.350 8.89mm

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Ambalaj

Tape & Reel (TR)

Insulation Color

Natural

Yayın Yılı

2012

Fabrika Tedarik Süresi

20 Weeks

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Sıra Sayısı

1

Connector Type

Header

Contact Type

Male Pin

Pitch Mating

0.079 2.00mm

Reach Svhc

Unknown

Option

GENERAL PURPOSE

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-25°C~85°C

Kurşunsuz

Lead Free
