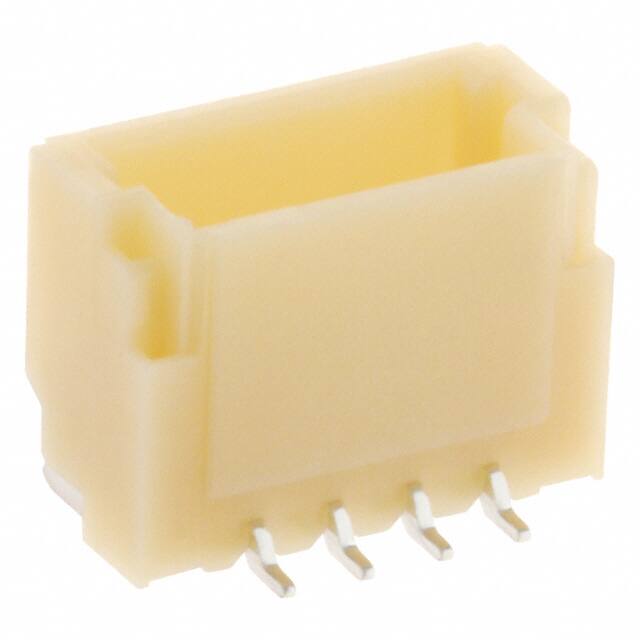

BM04B-SRSS-TB

Specifications

Current Rating Amps

1A

Montaj

Surface Mount

Contact Plating

Tin

Kurşunsuz

Contains Lead

Housing Material

Nylon

Çalışma Sıcaklığı

-25°C~85°C

Orientation

Vertical

Contact Finish Mating

Tin-Lead

RoHS Durumu

Non-RoHS Compliant

Option

GENERAL PURPOSE

Pitch Mating

0.039 1.00mm

Shrouding

Shrouded - 4 Wall

Parça Durumu

Obsolete

Contact Type

Male Pin

ECCN Kodu

EAR99

Yayın Yılı

2002

Number Of Contacts

4

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Connector Type

Header

Sıra Sayısı

1

Contact Materials

Copper Alloy

Insulation Height

0.167 4.25mm

Number Of Positions Loaded

All

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Nominal Gerilim

50V

Kurşunsuz Kodu

no

Additional Feature

TOP ENTRY

Insulation Materials

Polyamide (PA), Nylon

Seri

SR

Özellikler

Solder Retention

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Filter Feature

NO

Fastening Type

Push-Pull

REACH Uyumluluk Kodu

unknown

Stack Height Mating

4.9mm

Mixed Contacts

NO
