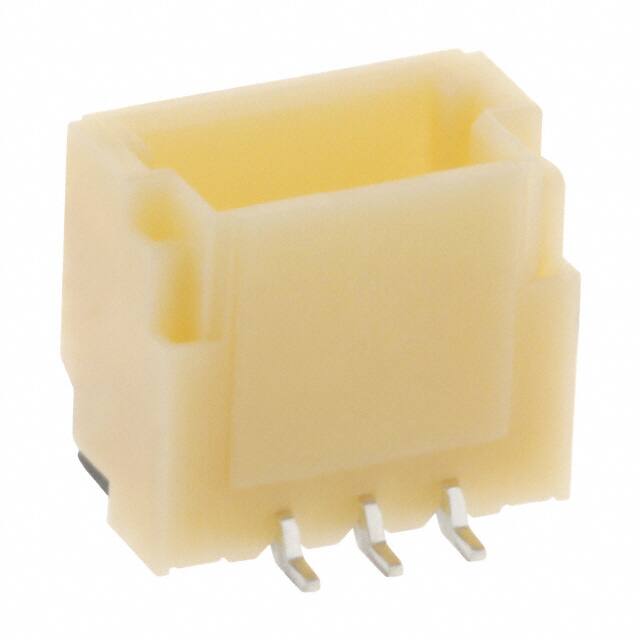

BM03B-SRSS-TB

Specifications

Parça Durumu

Obsolete

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.039 1.00mm

Option

GENERAL PURPOSE

RoHS Durumu

Non-RoHS Compliant

Contact Finish Mating

Tin-Lead

Contact Type

Male Pin

ECCN Kodu

EAR99

Contact Plating

Tin

Montaj

Surface Mount

Current Rating Amps

1A

Orientation

Vertical

Kurşunsuz

Contains Lead

Çalışma Sıcaklığı

-25°C~85°C

Housing Material

Nylon

Stack Height Mating

4.9mm

Mixed Contacts

NO

REACH Uyumluluk Kodu

unknown

Fastening Type

Push-Pull

Montaj Tipi

Surface Mount

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Mil Conformance

NO

Terminal

Solder

Ul Flammability Code

94V-0

Iec Conformance

NO

JESD-609 Kodu

e3

Style

Board to Cable/Wire

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Number Of Positions Loaded

All

Insulation Height

0.167 4.25mm

Contact Materials

Copper Alloy

Connector Type

Header

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Number Of Contacts

3

Yayın Yılı

2002
