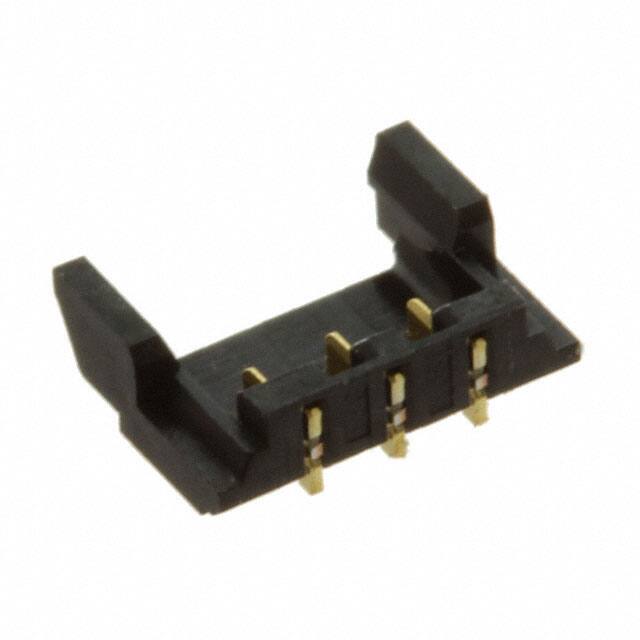

BM03B-ADHKS-GAN-ETB(LF)(SN)

Specifications

Connector Type

Header

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

17 Weeks

Yayın Yılı

2014

Insulation Color

White

Ambalaj

Cut Tape (CT)

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Insulation Height

0.069 1.75mm

Nominal Gerilim

30V

Özellikler

Solder Retention

Seri

ADH

Insulation Materials

Thermoplastic

Fastening Type

Detent Lock

Uzunluk

5.7mm

Montaj Tipi

Surface Mount, Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Rectangular

Style

Board to Cable/Wire

Gender

Male

Terminal

Solder

Montaj

Surface Mount

Pozisyon Sayısı

3

Contact Plating

Copper, Tin

Housing Color

Black

Housing Material

Resin

Çalışma Sıcaklığı

-25°C~85°C

Depth

4.3mm

Orientation

Straight

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

50V

Contact Finish Mating

Tin

Parça Durumu

Active

Shrouding

Shrouded - 3 Wall

Max Current Rating

3A

Pitch Mating

0.051 1.30mm

Contact Resistance

30mOhm

Contact Type

Male Blade

ECCN Kodu

EAR99
