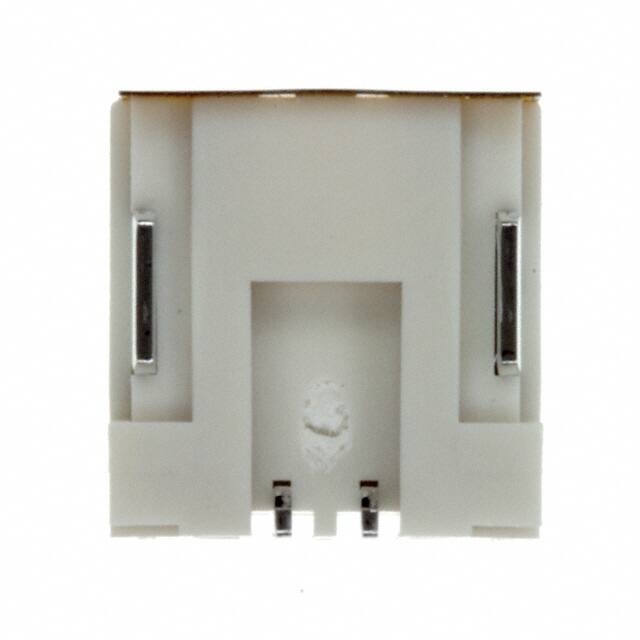

BM02B-ZESS-TBT(LF)(SN)

Specifications

Fabrika Tedarik Süresi

16 Weeks

Yayın Yılı

2011

Sıra Sayısı

1

Connector Type

Header

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Insulation Height

0.295 7.50mm

Ambalaj

Tape & Reel (TR)

Insulation Color

Natural

Additional Feature

SHROUDED, TOP ENTRY

Kurşunsuz Kodu

yes

Nominal Gerilim

100V

Contact Gender

MALE

Insulation Materials

Polyamide (PA), Nylon

Özellikler

Pick and Place, Solder Retention

Seri

ZE

Montaj Tipi

Surface Mount

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Rectangular

Fastening Type

Locking Ramp

REACH Uyumluluk Kodu

unknown

Mixed Contacts

NO

Stack Height Mating

9.4mm

JESD-609 Kodu

e3

Iec Conformance

NO

Style

Board to Cable/Wire

Terminal

Solder

Ul Flammability Code

94V-0

Mil Conformance

NO

Pozisyon Sayısı

2

Montaj

Surface Mount

Total Number Of Contacts

2

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-25°C~85°C

Orientation

Straight

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant
