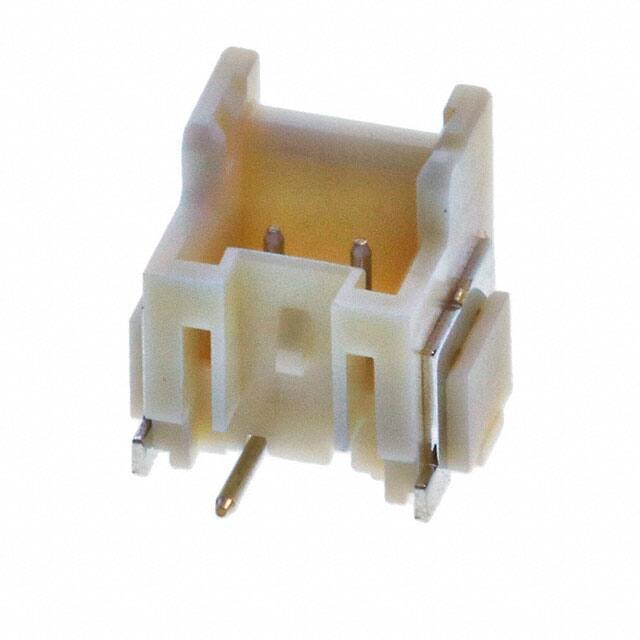

BM02B-XASS-TF(LF)(SN)

Specifications

Pozisyon Sayısı

2

Current Rating Amps

3A

Montaj

Surface Mount

Total Number Of Contacts

2

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-25°C~85°C

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Pitch Mating

0.098 2.50mm

Reach Svhc

Unknown

Option

GENERAL PURPOSE

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Contact Type

Male Pin

Yayın Yılı

2004

Fabrika Tedarik Süresi

16 Weeks

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Sıra Sayısı

1

Connector Type

Header

Contact Materials

Copper Alloy

Insulation Height

0.370 9.40mm

Number Of Positions Loaded

All

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Nominal Gerilim

250V

Kurşunsuz Kodu

yes

Additional Feature

TOP ENTRY, SHROUDED

Insulation Materials

Polyamide (PA), Nylon

Seri

XA

Özellikler

Solder Retention

Contact Shape

Circular

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Filter Feature

NO

Fastening Type

Locking Ramp

Mixed Contacts

NO

Stack Height Mating

11.9mm

Style

Board to Cable/Wire

Iec Conformance

NO
