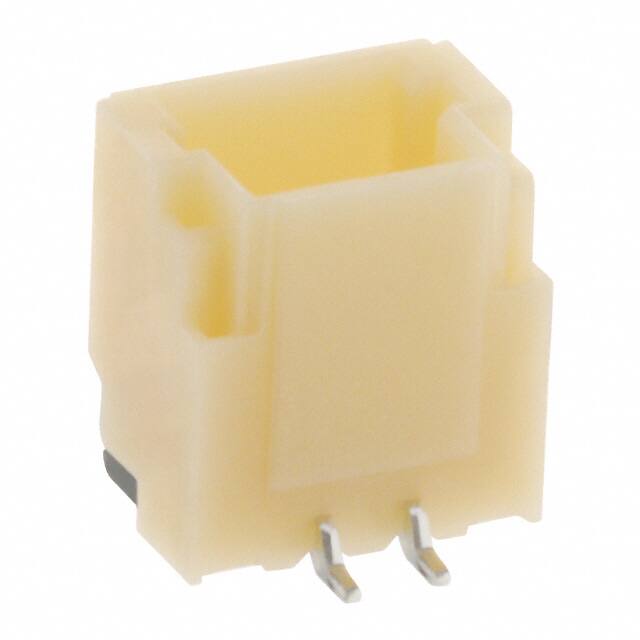

BM02B-SRSS-TB

Specifications

Montaj

Surface Mount

Current Rating Amps

1A

Contact Plating

Tin

Kurşunsuz

Contains Lead

Çalışma Sıcaklığı

-25°C~85°C

Housing Material

Nylon

Orientation

Vertical

RoHS Durumu

Non-RoHS Compliant

Contact Finish Mating

Tin-Lead

Parça Durumu

Obsolete

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.039 1.00mm

Option

GENERAL PURPOSE

Contact Type

Male Pin

ECCN Kodu

EAR99

Connector Type

Header

Sıra Sayısı

1

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Number Of Contacts

2

Yayın Yılı

2002

Ambalaj

Tape & Reel (TR)

Insulation Color

Natural

Number Of Positions Loaded

All

Insulation Height

0.167 4.25mm

Contact Materials

Copper Alloy

Additional Feature

TOP ENTRY

Kurşunsuz Kodu

no

Nominal Gerilim

50V

Özellikler

Solder Retention

Seri

SR

Insulation Materials

Polyamide (PA), Nylon

Fastening Type

Push-Pull

Montaj Tipi

Surface Mount

Filter Feature

NO

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Stack Height Mating

4.9mm

Mixed Contacts

NO

Iec Conformance

NO
