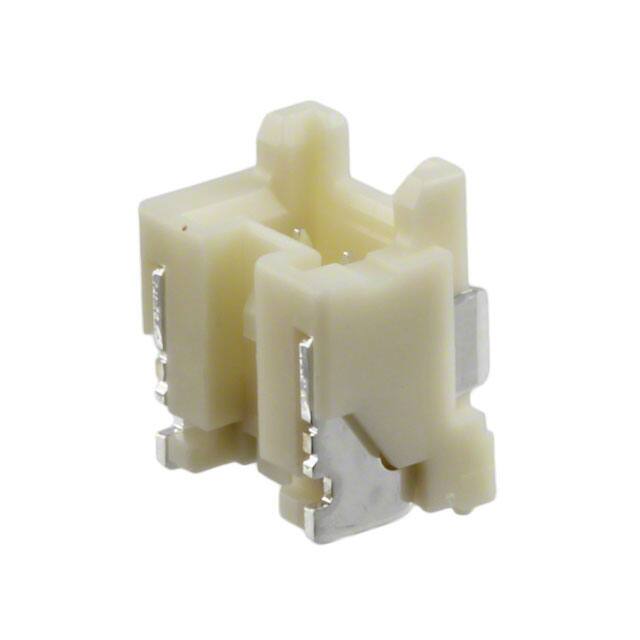

BM02B-PASS-1-TFT(LF)(SN)

Specifications

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-25°C~85°C

Total Number Of Contacts

2

Pozisyon Sayısı

2

Current Rating Amps

3A

Montaj

Surface Mount

Contact Type

Male Pin

ECCN Kodu

EAR99

Pitch Mating

0.079 2.00mm

Reach Svhc

Unknown

Option

GENERAL PURPOSE

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Insulation Materials

Polyamide (PA), Nylon

Seri

PA

Özellikler

Board Guide, Pick and Place, Solder Retention

Nominal Gerilim

250V

Kurşunsuz Kodu

yes

Insulation Height

0.350 8.89mm

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Ambalaj

Tape & Reel (TR)

Insulation Color

Natural

Yayın Yılı

2012

Fabrika Tedarik Süresi

20 Weeks

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Connector Type

Header

Sıra Sayısı

1

HTS Kodu

8536.69.40.40

Ul Flammability Code

94V-0

Terminal

Solder

Gender

Male

Mil Conformance

NO

Style

Board to Cable/Wire

Iec Conformance

NO

Stack Height Mating

11.1mm 16mm 16.2mm

Mixed Contacts

NO
