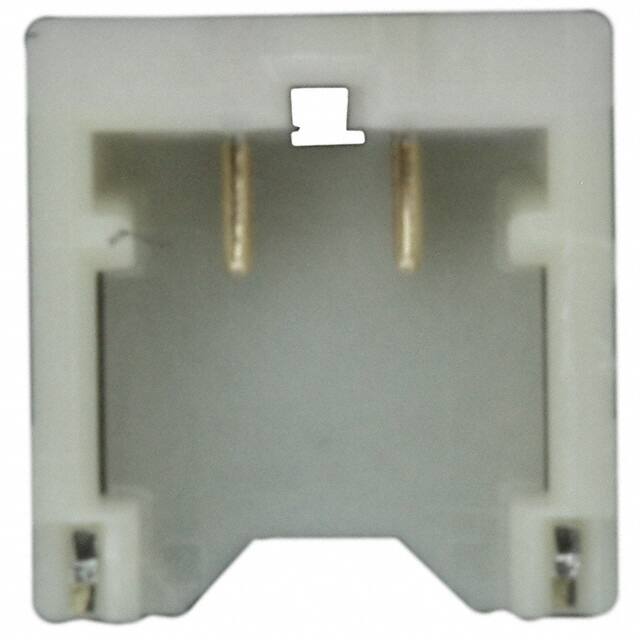

BM02B-ACHSS-GAN-TF(LF)(SN)

Specifications

Çalışma Sıcaklığı

-25°C~85°C

Montaj

Surface Mount

Pozisyon Sayısı

2

Contact Type

Male Blade

Material

Resin

Kurşunsuz Kodu

yes

Seri

ACH

Insulation Materials

Thermoplastic

Sıra Sayısı

1

Din Conformance

NO

Flammability Rating

UL94 V-0

Insulation Height

0.055 1.40mm

Iec Conformance

NO

Style

Board to Cable/Wire

Ul Flammability Code

94V-0

HTS Kodu

8536.69.40.40

Contact Shape

Rectangular

Mixed Contacts

NO

REACH Uyumluluk Kodu

unknown

Kurşunsuz

Lead Free

Insulation Resistance

100MOhm

Voltage Rated Ac

50V

Orientation

Right Angle

Total Number Of Contacts

2

Akım Değeri

2A

Contact Resistance

10mOhm

Renk

White

ECCN Kodu

EAR99

Mating Information

MULTIPLE MATING PARTS AVAILABLE

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Gold

Parça Durumu

Active

Shrouding

Shrouded - 3 Wall

Reach Svhc

No SVHC

Pitch Mating

0.047 1.20mm

Option

GENERAL PURPOSE

Additional Feature

LOW PROFILE

Özellikler

Solder Retention

Connector Type

Header

Material Flammability Rating

UL94 V-0
