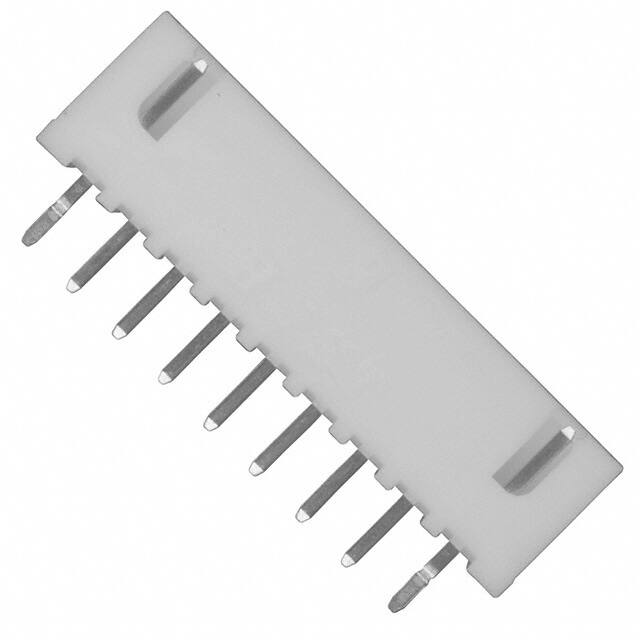

B9B-XH-A(LF)(SN)

Specifications

Uzunluk

24.9mm

Mil Conformance

NO

Reach Svhc

No SVHC

Max Voltage Rating Ac

250V

Iec Conformance

NO

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Lead Pitch

2.5mm

Shrouding

Shrouded - 4 Wall

Filter Feature

NO

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Max Current Rating

3A

Contact Type

Male Pin

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Akım Değeri

3A

Pitch Mating

0.098 2.50mm

Sıra Sayısı

1

Housing Color

White

Kurşunsuz Kodu

yes

Connector Type

Header

Contact Finish Mating

Tin

Depth

5.75mm

Insulation Height

0.276 7.00mm

Style

Board to Cable/Wire

Parça Durumu

Active

Weight

28.349523g

Fabrika Tedarik Süresi

16 Weeks

Çalışma Sıcaklığı

-25°C~85°C

Insulation Color

Natural

Pozisyon Sayısı

9

REACH Uyumluluk Kodu

unknown

Contact Length Post

0.134 3.40mm

Contact Materials

Brass

Orientation

Straight

Voltage Rated Ac

250V

Insulation Resistance

1GOhm

Din Conformance

NO
