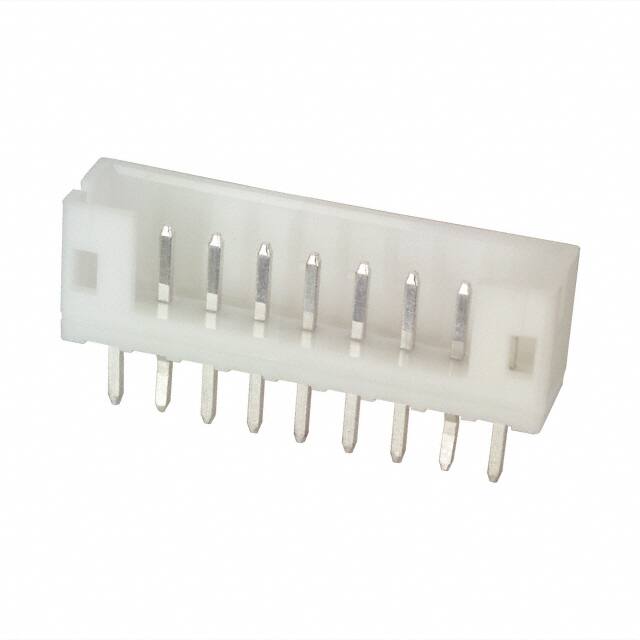

B9B-PH-K-S(LF)(SN)

Specifications

Style

Board to Cable/Wire

Voltage Rated Dc

100V

Insulation Height

0.236 6.00mm

Contact Length Post

0.134 3.40mm

Weight

28.349523g

Parça Durumu

Active

Fabrika Tedarik Süresi

16 Weeks

Çalışma Sıcaklığı

-25°C~85°C

Sıra Sayısı

1

Housing Color

Natural

Pitch Mating

0.079 2.00mm

Contact Finish Mating

Tin

Kurşunsuz Kodu

yes

Connector Type

Header

Contact Lengthmating

0.130 3.30mm

Contact Type

Male Pin

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Akım Değeri

2A

Iec Conformance

NO

Uzunluk

7.112mm

Mil Conformance

NO

Reach Svhc

No SVHC

Shrouding

Shrouded - 4 Wall

Filter Feature

NO

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Lead Pitch

2mm

Montaj

Through Hole

Housing Material

Nylon

Yükseklik

9.4mm

Number Of Positions Loaded

All

Overall Contact Length

0.333 8.45mm

Seri

PH

Genişlik

4.5mm

Working Voltage

100V

JESD-609 Kodu

e3
