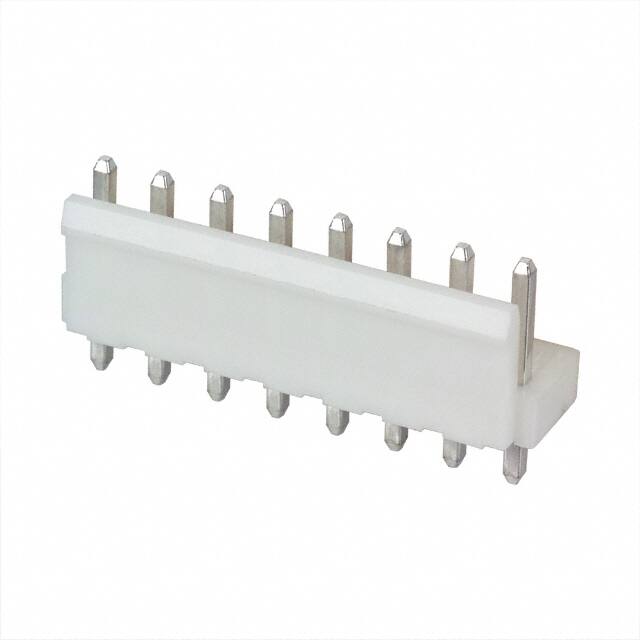

B8P-VH(LF)(SN)

Specifications

Mixed Contacts

NO

Option

GENERAL PURPOSE

Akım Değeri

10A

Connector Type

Header

Mil Conformance

NO

Montaj

Through Hole

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Pitch Mating

0.156 3.96mm

Orientation

Straight

Contact Materials

Brass

Contact Length Post

0.146 3.70mm

Yayın Yılı

2008

Iec Conformance

NO

Fastening Type

Locking Ramp

JESD-609 Kodu

e3

Montaj Tipi

Through Hole

Nominal Gerilim

250V

Ambalaj

Bulk

Parça Durumu

Active

Stack Height Mating

16.5mm

Uzunluk

31.62mm

Contact Type

Male Pin

Shrouding

Shrouded - 1 Wall

Sıra Sayısı

1

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Lengthmating

0.303 7.70mm

Number Of Positions Loaded

All

REACH Uyumluluk Kodu

unknown

Gender

Male

Pozisyon Sayısı

8

Overall Contact Length

0.575 14.60mm

Kurşunsuz

Lead Free

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

16 Weeks

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Filter Feature

NO
