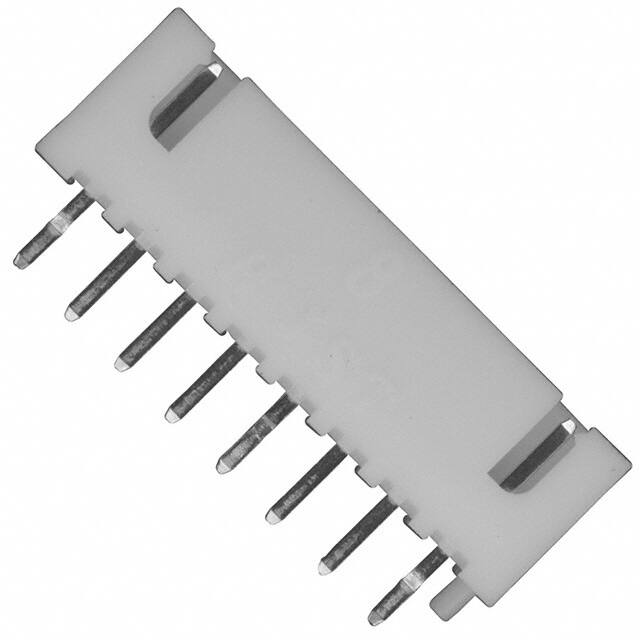

B8B-XH-AM(LF)(SN)

Specifications

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Contact Type

Male Pin

Ul Flammability Code

94V-0

Ambalaj

Bulk

Insulation Height

0.276 7.00mm

Parça Durumu

Active

Özellikler

Board Guide

Additional Feature

SHROUDED, TOP ENTRY

Stack Height Mating

9.8mm

Renk

Green

Terminal Adımı

2.5mm

Iec Conformance

NO

Yayın Yılı

2005

JESD-609 Kodu

e3

Nominal Gerilim

250V

Montaj Tipi

Through Hole

Fastening Type

Detent Lock

Current Rating Amps

3A

Seri

XH

Çalışma Sıcaklığı

-25°C~85°C

Insulation Color

Natural

Pitch Mating

0.098 2.50mm

Insulation Materials

Polyamide (PA66), Nylon 6/6

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Contact Length Post

0.134 3.40mm

Contact Materials

Brass

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Mil Conformance

NO

Din Conformance

NO

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

16 Weeks

Montaj

Through Hole

REACH Uyumluluk Kodu

unknown

Pozisyon Sayısı

8

Connector Type

Header
