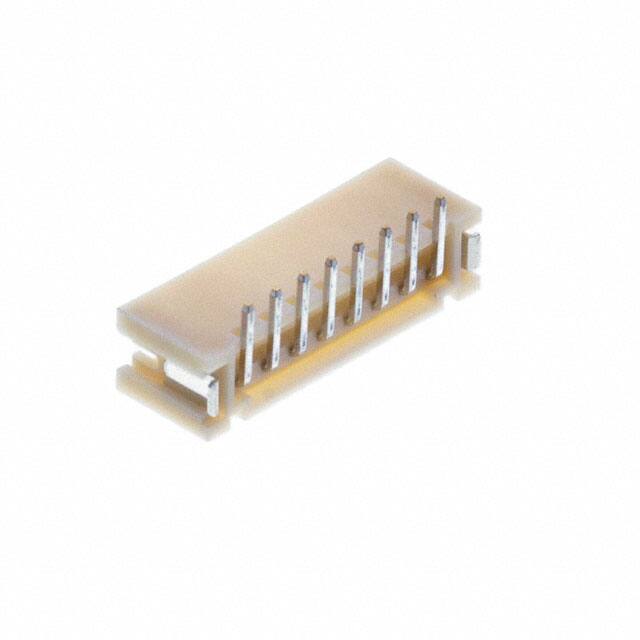

B8B-PH-SM4-TBT(LF)(SN)

Specifications

Contact Materials

Copper Alloy

Pitch Mating

0.079 2.00mm

Insulation Materials

Polyamide (PA6T), Nylon 6T

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Din Conformance

NO

Fabrika Tedarik Süresi

18 Weeks

Montaj

Surface Mount

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Mil Conformance

NO

Pozisyon Sayısı

8

Connector Type

Header

Mixed Contacts

NO

Option

GENERAL PURPOSE

Number Of Positions Loaded

All

Contact Lengthmating

0.130 3.30mm

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Shrouding

Shrouded - 4 Wall

Contact Type

Male Pin

Ul Flammability Code

94V-0

Contact Shape

Square

Özellikler

Pick and Place, Solder Retention

Additional Feature

TOP ENTRY

Stack Height Mating

8.6mm

Total Number Of Contacts

8

Ambalaj

Tape & Reel (TR)

Insulation Height

0.260 6.60mm

Parça Durumu

Active

Montaj Tipi

Surface Mount

Nominal Gerilim

100V

JESD-609 Kodu

e3

Fastening Type

Detent Lock

Terminal Adımı

2mm

Iec Conformance

NO

Yayın Yılı

2008
